AT-4032-TT-R datasheet(1/1 Pages) PUIAUDIO

tên linh kiện	AT-4032-TT-R

Giải thích chi tiết về linh kiện	ALL DIMENSIONS ARE IN MILLIMETERS

PDF	1 Pages

Scroll/Zoom	100%

nhà sản xuất	PUIAUDIO [PUI audio inc.]

Trang chủ	http://www.puiaudio.com/

Logo

1 / 1 page

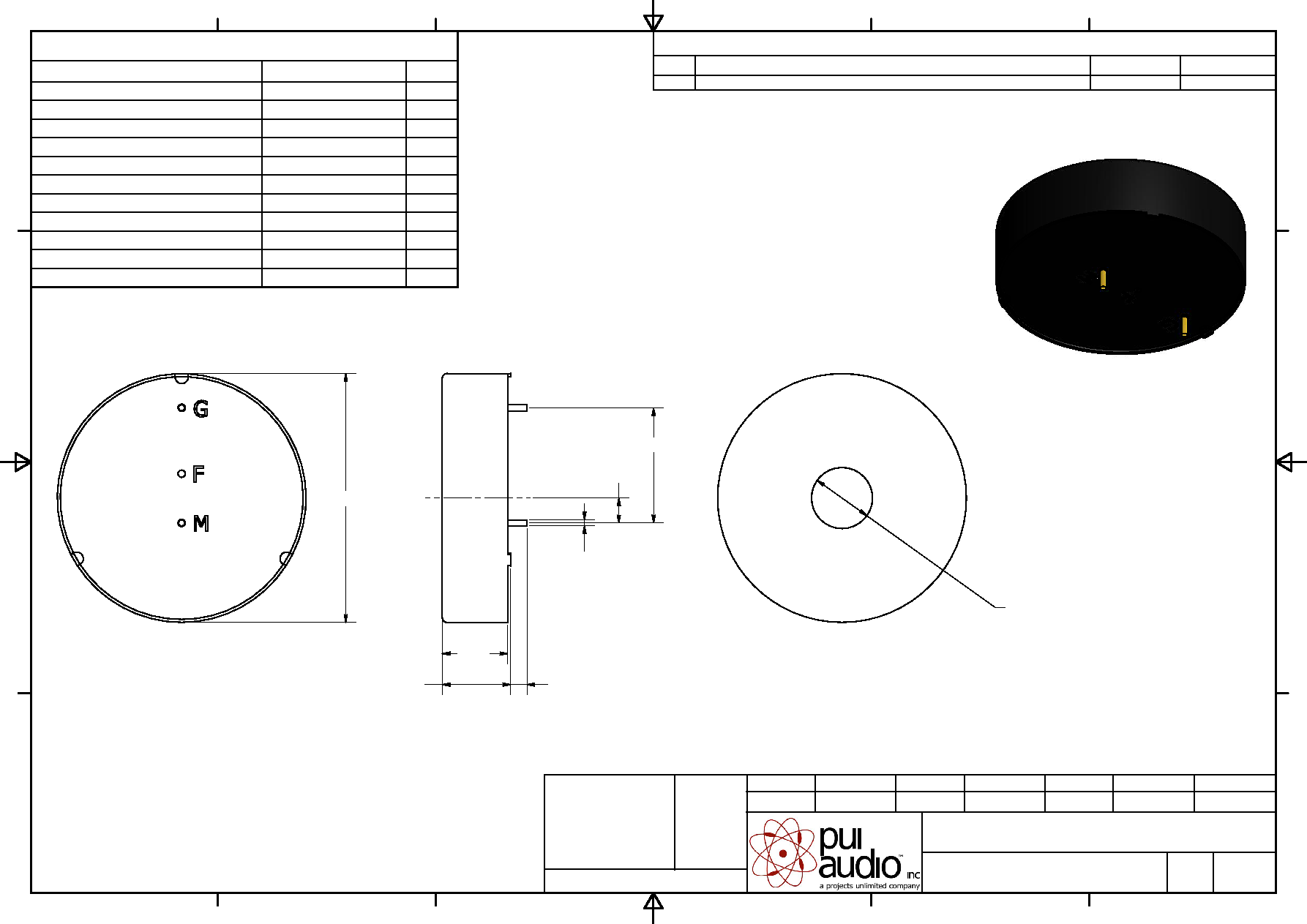

Transducer (Piezo)

AT-4032-TT-R

T.E.S.

M.L.

B.R

11/3/2014

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

11/3/2014

Date

11/11/2014

Date

11/11/2014

UNLESS OTHERWISE SPECIFIED:

All PURCHASES ARE SUBJECT TO AND

INCORPORATE THE PUI AUDIO TERMS

AND CONDITIONS SALE FOUND AT

http://www.puiaudio.com

/pdf/terms_conditions.pdf

(paper copy available upon request).

DIMENSIONS ARE IN MILLIMETERS,

TOLERANCES ARE 0.5 AND

ANGLES ARE 3 .

AT-4032-TT-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

11/11/2014

THIS DOCUMENT CONTAINS DATA PROPRIETARY

TO PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT

PRIOR WRITTEN PERMISSION OF PROJECTS

UNLIMITED, INC. IS PROHIBITED.

2003, Projects Unlimited Inc.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2011/65/EU COMPLIANT.

SPECIFICATIONS

PARAMETERS

VALUES

UNIT

RATED VOLTAGE

12

Vp-p

OPERATING VOLTAGE RANGE

1 ~ 60

Vp-p

RATED CURRENT (MAX @ 25Vp-p)

40

mA

CAPACITANCE

30,000

30%

OHM

MINIMUM SPL @ 10 CM

100

dBA

RESONANT FREQUENCY

3,250

500

Hz

OPERATING TEMPERATURE

-30 ~ +80

C

STORAGE TEMPERATURE

-40 ~ +85

C

HOUSING MATERIAL

PBT (BLACK)

-

TERMINAL MATERIAL

Au plated Cu

-

WEIGHT

11

grams

11 - 0.5

0.3

+

2.6

0.3

40

0.5

1

0.1

2-

18.5

10.5

4

9.8

HOLE

SOUND EMISSION
