ASX10108-SPD-R datasheet(1/1 Pages) PUIAUDIO

tên linh kiện	ASX10108-SPD-R

Giải thích chi tiết về linh kiện	ALL DIMENSIONS ARE IN MILLIMETERS

PDF	1 Pages

Scroll/Zoom	100%

nhà sản xuất	PUIAUDIO [PUI audio inc.]

Trang chủ	http://www.puiaudio.com/

Logo

1 / 1 page

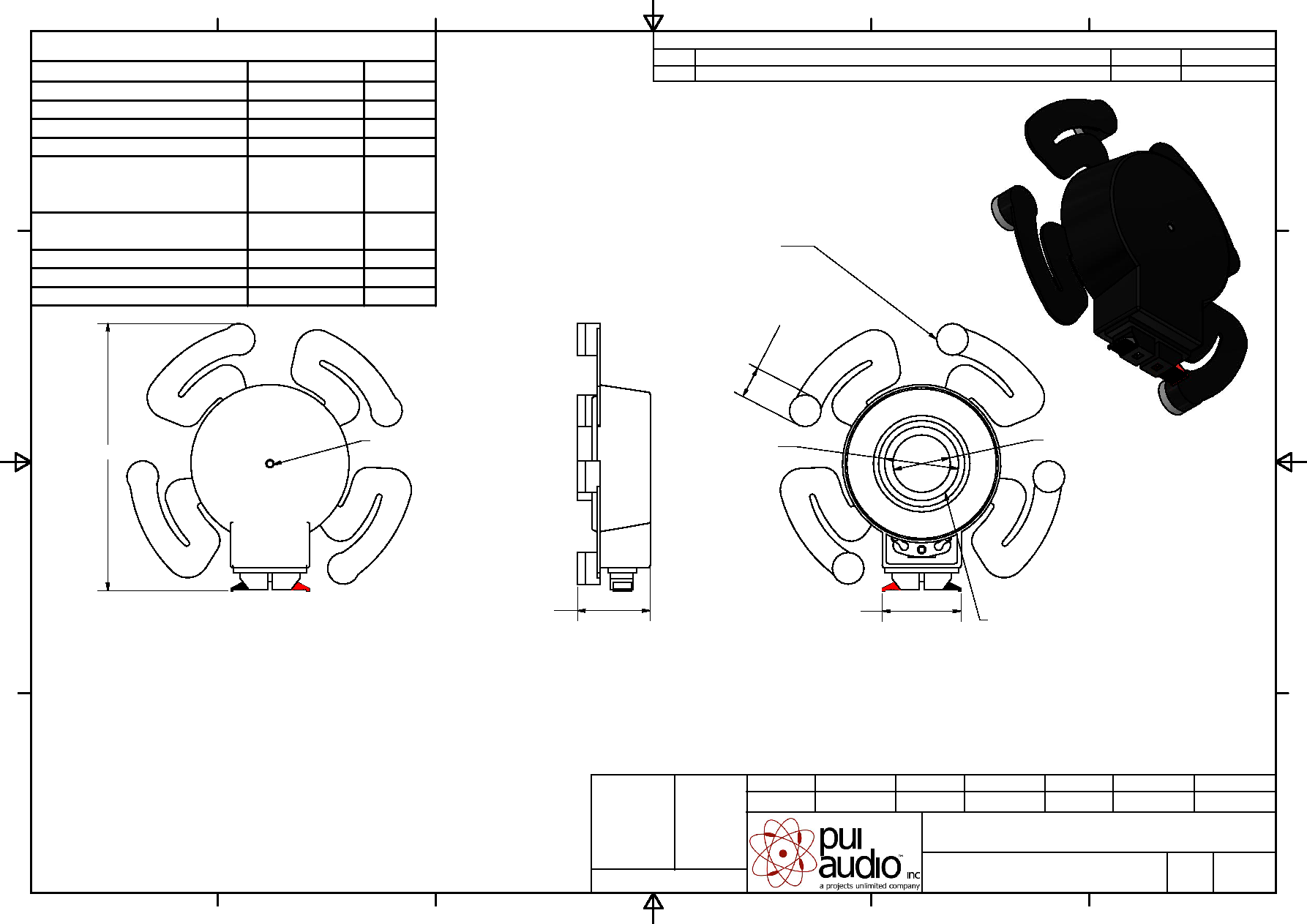

Exciter

ASX10108-SPD-R

M.V.

B.R.

1/31/2017

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

1/31/2017

Date

1/31/2017

Date

1/31/2017

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE 0.5 AND

ANGLES ARE 3 .

ASX10108-SPD-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

1/31/17

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

20

W

MAX INPUT POWER

30

W

IMPEDANCE

8 15%

OHM

RESONANT FREQUENCY

220 20%

Hz

AVG. SPL 1W/0.1M ON 4MM

THICK PLA PANEL

(AVG 0.5, 1.0, 2.0, AND 5.0 kHz)

102

dBA

FREQUENCY RANGE

(MATERIAL DEPENDANT)

70~ 15,000

Hz

MAGNET MATERIAL

NdFeB

-

OPERATING TEMPERATURE

-20~ +60

C

WEIGHT

91

grams

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

2003, Projects Unlimited Inc.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2011/65/EU COMPLIANT.

4. FOR APPLICATIONS THAT ARE TO BE SUBJECTED TO

EXTERNAL FORCE, SHOCK, OR VIBRATION, PUI AUDIO

RECOMMENDS SOLID MECHANICAL

REINFORCEMENT TO ENSURE RIGID COUPLING BEYOND

THAT PROVIDED BY THE

3M

VHB

F-9473PC DOUBLE-SIDED TAPE.

101.4

0.3

24.77

0.5

26.5

0.5

21.7

28

12

0.15

EVA MOUNTING PADS WITH

3M

VHB

DOUBLE-SIDED TAPE (4)

MOUNTING RING

3M

VHB

DOUBLE-SIDED TAPE

M3 THREADS 4MM DEEP
