ASX08604-SW-R datasheet(1/1 Pages) PUIAUDIO

tên linh kiện	ASX08604-SW-R

Giải thích chi tiết về linh kiện	ALL DIMENSIONS ARE IN MILLIMETERS

PDF	1 Pages

Scroll/Zoom	100%

nhà sản xuất	PUIAUDIO [PUI audio inc.]

Trang chủ	http://www.puiaudio.com/

Logo

1 / 1 page

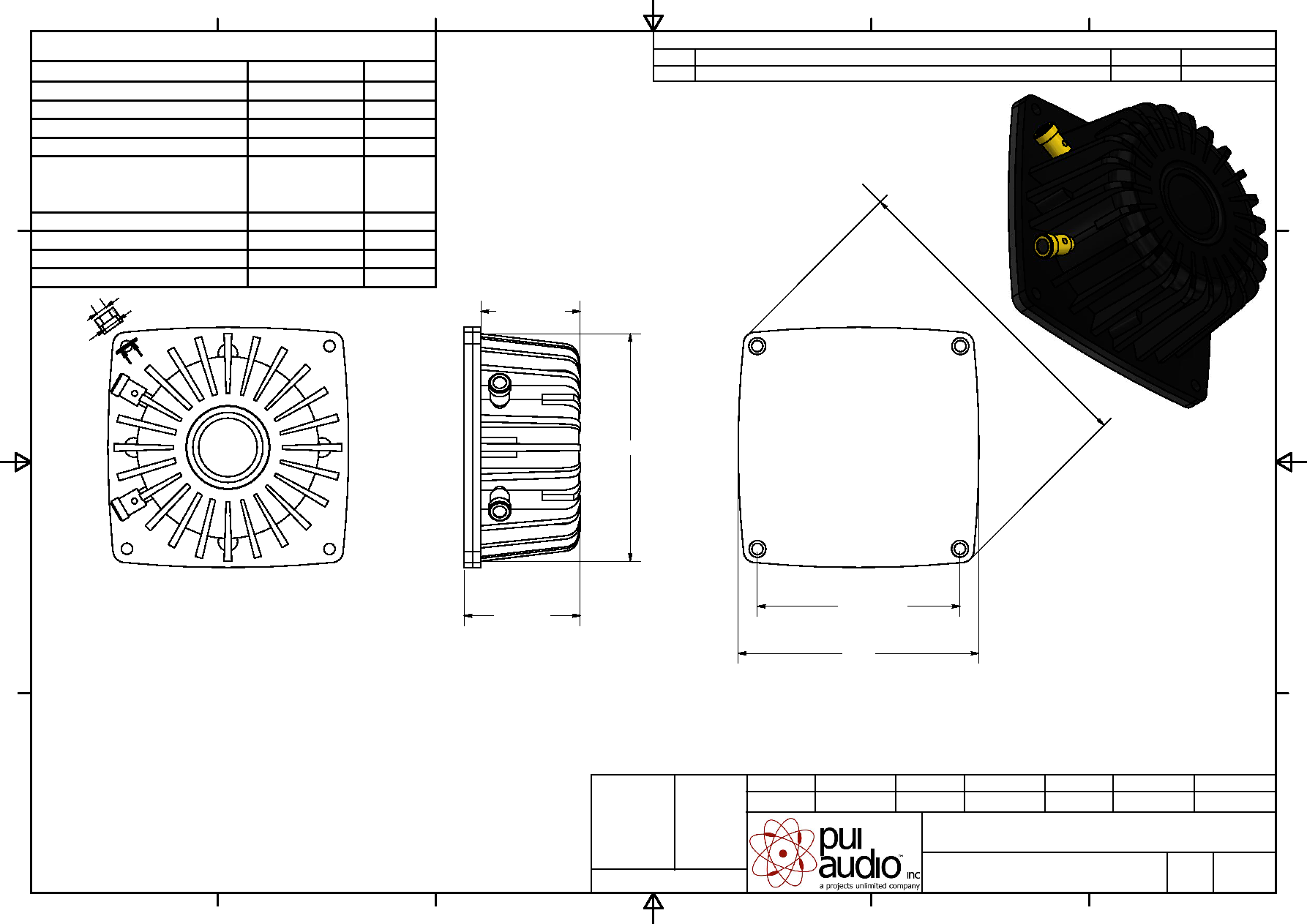

A-A

AA

Subwoofer Exciter

ASX08604-SW-R

M.V.

B.R.

2/20/2017

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

2/20/2017

Date

2/20/2017

Date

2/20/2017

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE 0.5 AND

ANGLES ARE 3 .

ASX08604-SW-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

2/20/17

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

25

W

MAX INPUT POWER

50

W

IMPEDANCE

4 15%

OHM

RESONANT FREQUENCY

35 20%

Hz

AVG. SPL 2.83V/0.1M ON 4MM

THICK PLA PANEL

(AVG 20, 40, 80, AND 160 Hz)

80

dBA

FREQUENCY RANGE

20~ 10,500

Hz

MAGNET MATERIAL

NdFeB

-

OPERATING TEMPERATURE

-20~ +60

C

WEIGHT

176.8

grams

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

2003, Projects Unlimited Inc.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2011/65/EU COMPLIANT.

35.7

0.3

42

0.5

112.9

0.3

82.8

0.3

72.3

0.3

4

6

85.9
