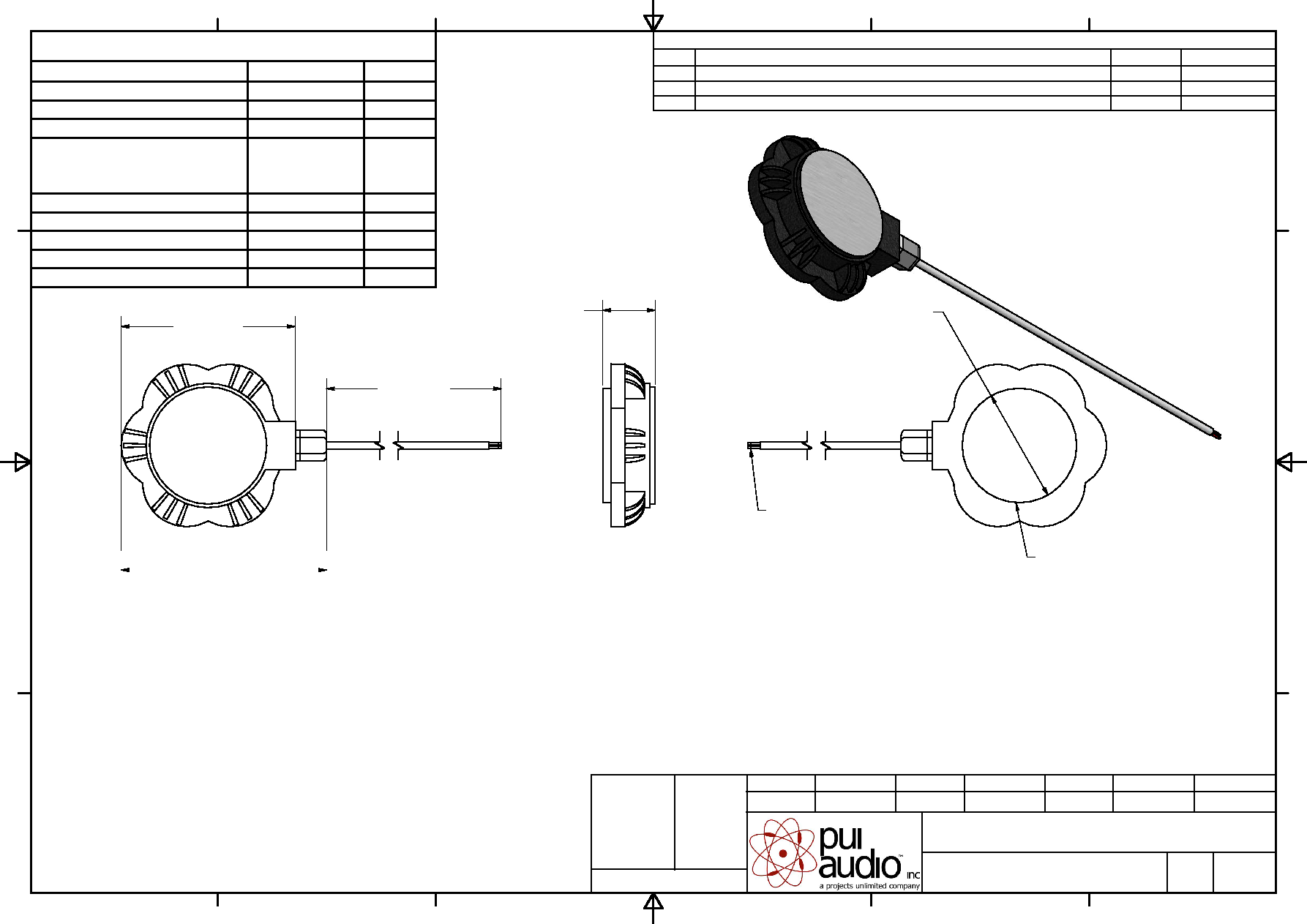

Exciter

ASX07008-WP-R

M.V.

M.V.

B.R.

5/18/2016

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

5/18/2016

Date

5/18/2016

Date

5/18/2016

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE 0.5 AND

ANGLES ARE 3 .

ASX07008-WP-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

5/18/2016

A

ADDED NOTE 5

6/27/16

B.R.

B

CORRECTED LEAD WIRE LENGTH

7/13/17

M.V.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

5

W

MAX INPUT POWER

10

W

IMPEDANCE

8 15%

OHM

AVG. SPL 1W/0.1M ON 4MM

THICK PLA PANEL

(AT 0.5, 1.0, 2.0, 5.0 kHz)

82

dBA

RESONANT FREQUENCY

1200 20%

Hz

FREQUENCY RANGE

Fo~10,500

Hz

MAGNET MATERIAL

NdFeB

-

OPERATING TEMPERATURE

-20~ +60

C

WEIGHT

115

grams

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

2003, Projects Unlimited Inc.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2011/65/EU COMPLIANT.

4. IP67 RATED FOR DUST TIGHT AND WATERPROOF OPERATION TO 1M.

EXTERNAL FORCE, SHOCK, OR VIBRATION, PUI AUDIO

RECOMMENDS SOLID MECHANICAL

REINFORCEMENT TO ENSURE RIGID COUPLING BEYOND

THAT PROVIDED BY THE

3M

VHB

F-9473PC DOUBLE-SIDED TAPE.

1750

10

82.75

21

0.5

46

0.5

MOUNTING PAD

3M

VHB

DOUBLE-SIDED TAPE

24 AWG WIRES

70.2

0.5
