AS09008PO-2-WR-R datasheet(1/1 Pages) PUIAUDIO

tên linh kiện	AS09008PO-2-WR-R

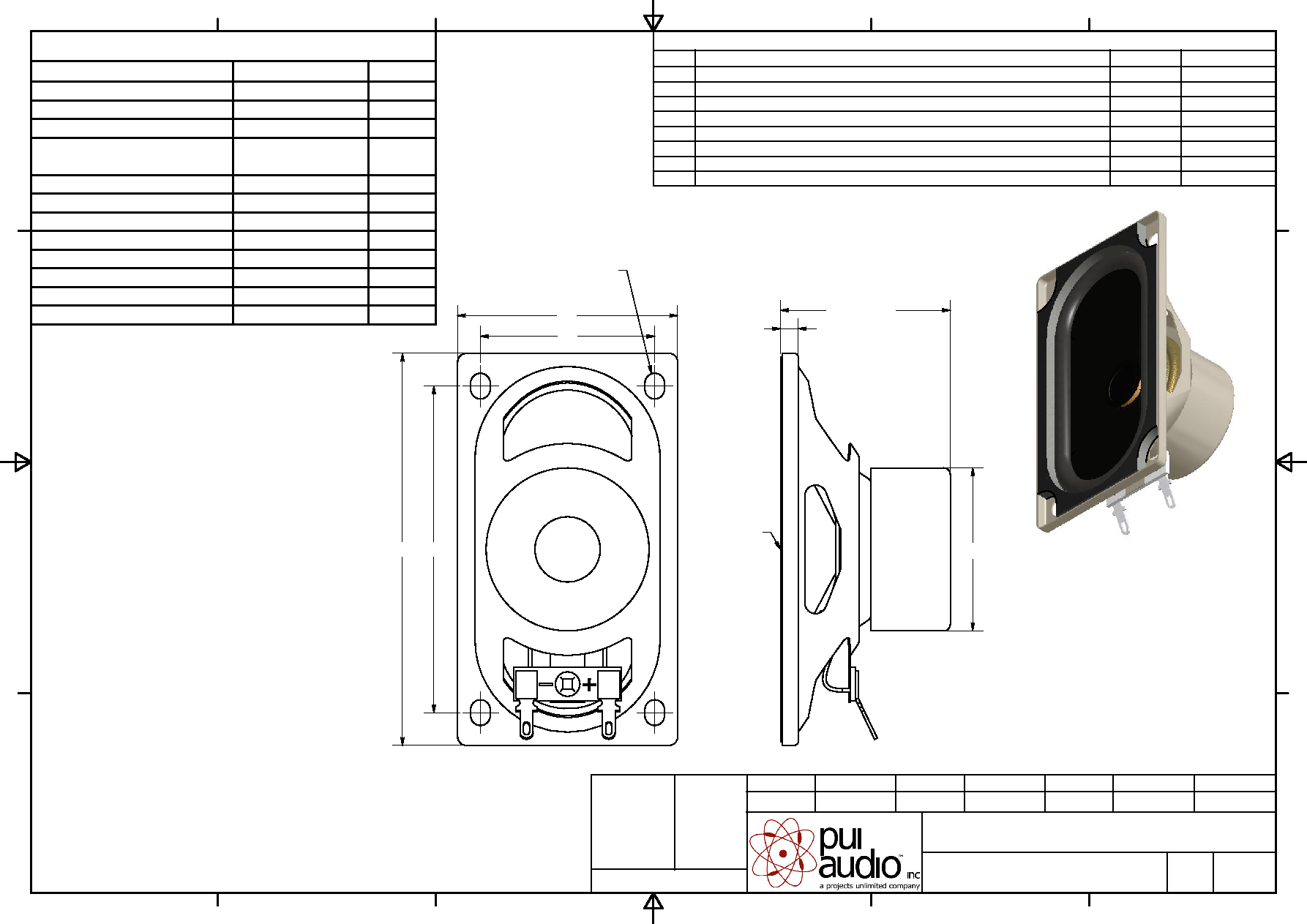

Giải thích chi tiết về linh kiện	ALL DIMENSIONS ARE IN MILLIMETERS

PDF	1 Pages

Scroll/Zoom	100%

nhà sản xuất	PUIAUDIO [PUI audio inc.]

Trang chủ	http://www.puiaudio.com/

Logo

1 / 1 page

Speaker

AS09008PO-2-WR-R

J.A.F.

B.R.

E.P.

1/29/2009

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

8/16/2005

Date

8/16/2005

Date

8/16/2005

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE 0.5 AND

ANGLES ARE 3 .

AS09008PO-2-WR-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

8/16/2005

A

REVISED MAGNET DIAMETER

12/19/2007

R.W.

B

REVISED HEIGHT & HOLE DIMENSIONS

1/29/2009

B.R.

C

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

1/29/2009

B.R.

D

ADDED NOTE 5

8/12/2011

B.R.

E

REVISED OPERATING TEMPERATURE

2/9/2012

C.W.

F

REVISED WIDTH, HOLE, MAGNET & HEIGHT DIMS. AND SPECS.

7/5/2013

M.L.

G

REVISED ELECTRICAL PARAMETERS AND DIMENSIONS

7/15/2014

M.L.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

5

W

MAX INPUT POWER

8

W

IMPEDANCE

8

15%

OHM

OUTPUT SPL @ 1W/0.5M

(AT 0.6, 0.8, 1.0, 1.2 kHz)

87

3

dBA

DISTORTION (MAX.)

3%

-

RESONANT FREQUENCY

200

20%

Hz

FREQUENCY RANGE

Fo~ 20,000

Hz

HOUSING MATERIAL

METAL

-

CONE MATERIAL

TREATED PAPER

-

MAGNET MATERIAL

FERRITE

-

OPERATING TEMPERATURE

-25 ~ +70

C

WEIGHT

118

grams

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR

WITHDRAWL WITHOUT NOTICE.

3. THIS PART IS RoHS 2011/65/EU COMPLIANT.

4. CONE HAS BEEN TREATED FOR WATER RESISTANCE.

5. BASE SPEAKER PUI# AS09008PO-2-R.

40

50

75

90

38

4.4

39.5

0.5

4.3 x 6.0 (4) 0.2

4

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

2003, Projects Unlimited Inc.
