AS01808AO-3-SC-R datasheet(4/4 Pages) PUIAUDIO

4 / 4 page

Speaker

AS01808AO-3-SC-R

M.V.

B.R.

3/23/2016

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

3/23/2016

Date

3/23/2016

Date

3/23/2016

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE 0.5 AND

ANGLES ARE 3 .

AS01808AO-3-SC-R.idw

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

RELEASED FROM ENGINEERING

3/23/16

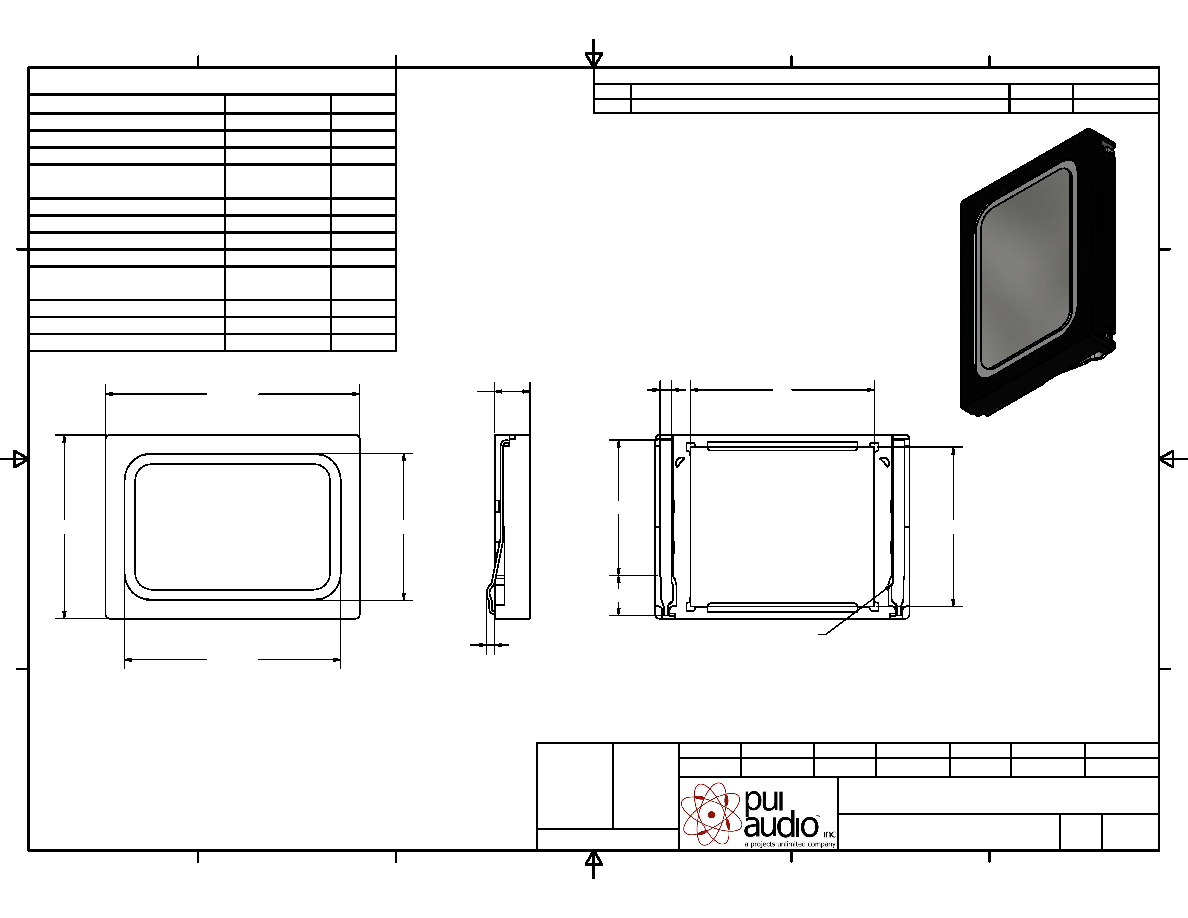

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

1.0

MAX INPUT POWER

1.2

IMPEDANCE

8 15%

OHM

OUTPUT SPL @ 1W/0.1M

(AVG. 0.8, 1, 1.2, 1.5 kHz)

94 3

dBA

DISTORTION (MAX.)

RESONANT FREQUENCY

420 20%

FREQUENCY RANGE

Fo ~ 14,000

HOUSING MATERIAL

ABS

CONE MATERIAL

ALUMINUM CAP

MYLAR

MAGNET MATERIAL

NdFeB

OPERATING TEMPERATURE

-25 ~ +60

WEIGHT

grams

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

2003, Projects Unlimited Inc.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2011/65/EU COMPLIANT.

0.2

10.6

15.6

2.5

0.2

0.6

0.8 x 2

9.6 x 2

11.3

SPRING CONTACT X 2

2.8
