Data Sheet
ADRF5545A
Rev. A | Page 19 of 20
APPLICATIONS INFORMATION
To generate the evaluation PCB used in a typical application
circuit (see the ADRF5545A-EVALZ user guide for more
information), use proper RF circuit design techniques. Signal
lines at the RF port must have a 50 Ω impedance, and the
package ground leads and the backside ground slug must
connect directly to the ground plane. The evaluation board
shown in Figure 47 is available from Analog Devices, Inc., upon
request.

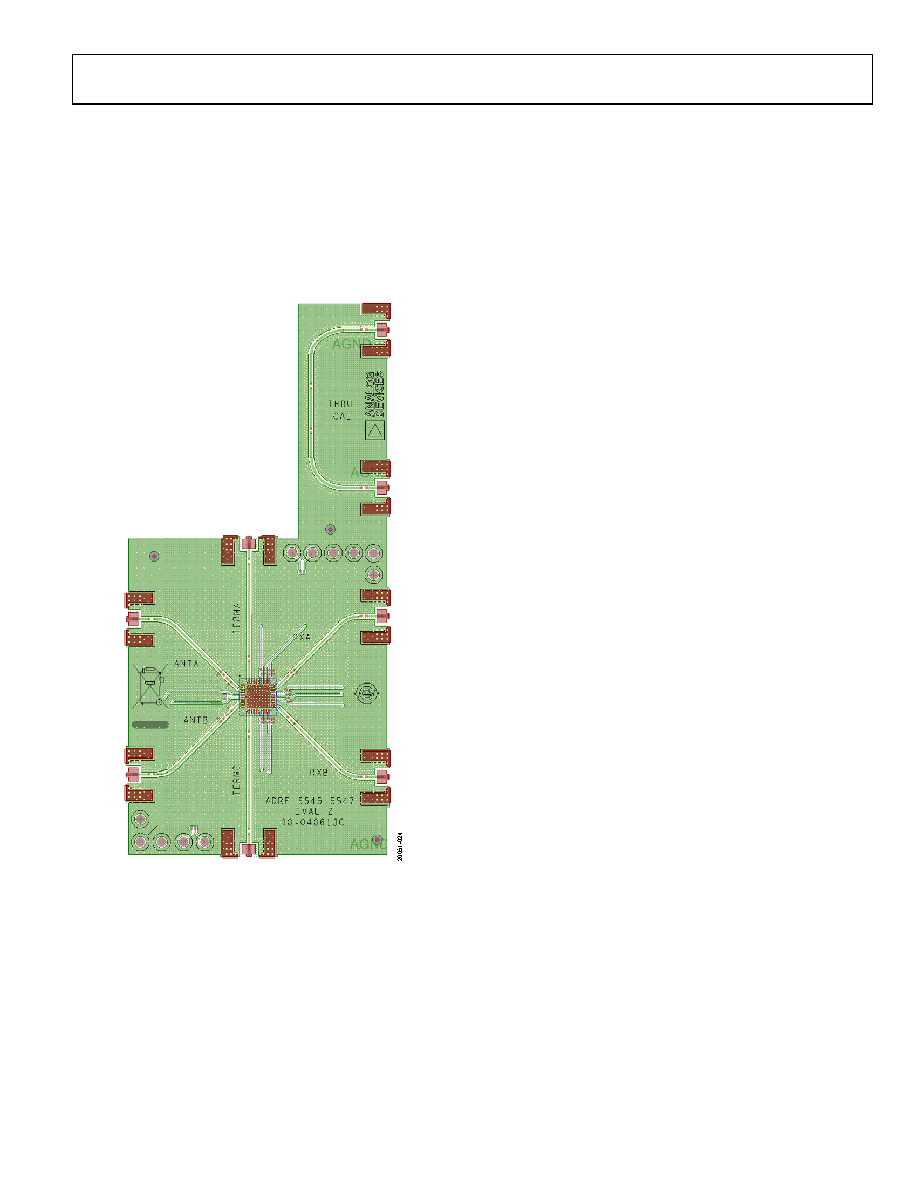

Figure 47. ADRF5545A-EVALZ Evaluation Board
2.6 GHZ OPERATION
The ADRF5545A can be used for applications at 2.6 GHz (see
the ADRF5545A-EVALZ user guide for more information).
Table 2 shows the specifications of this evaluation board tuned
at 2.6 GHz. See Figure 27 to Figure 46 for the typical
performance plots reflecting these specifications at 2.6 GHz.
