Technical Data DS4308

Effective August2017

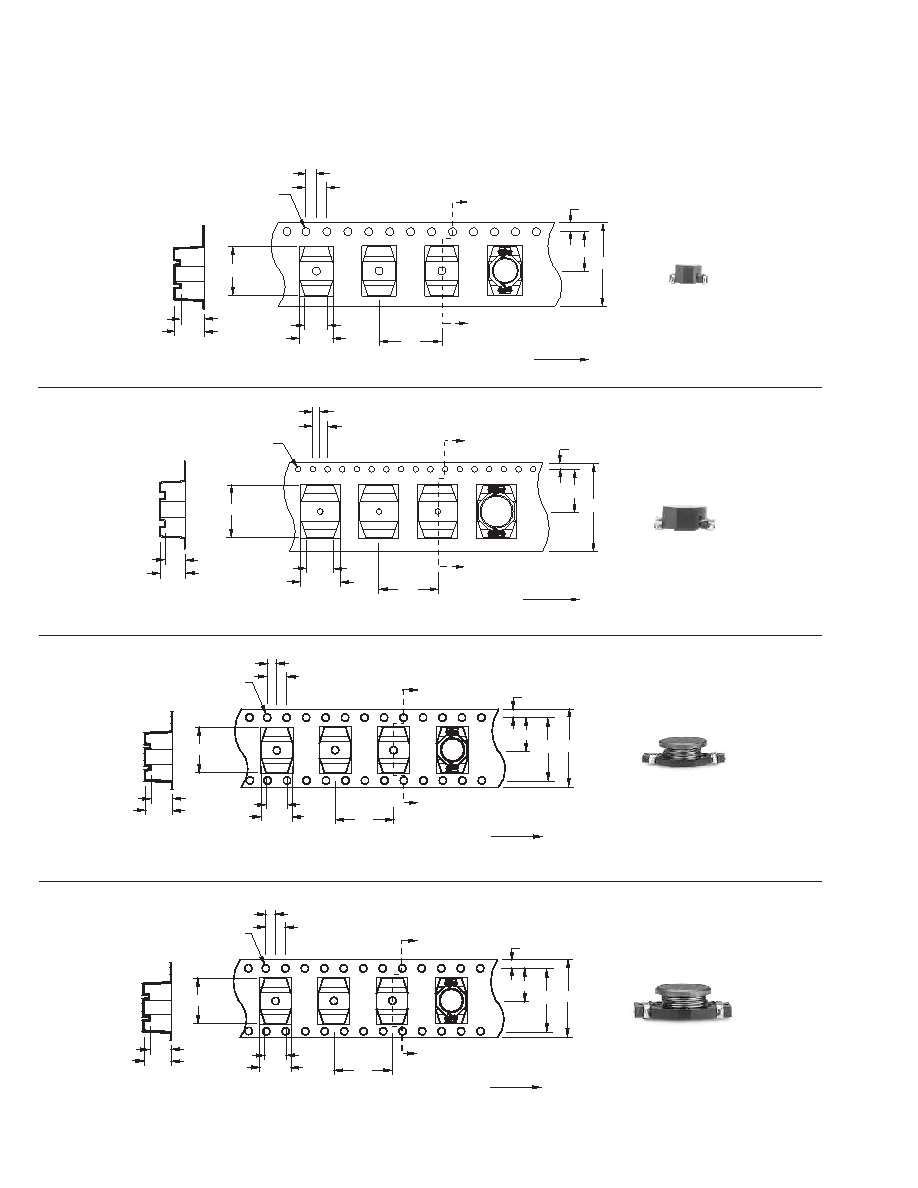

Packaging information- mm

UNI-PAC™ drum core power inductors

14.3

10.7

5.1

1.5 Dia.

16.0

6.8

5.4

SECTION A-A

1.75

11.5

2.0

4.0

Direction of feed

Dimensions in millimeters.

UP2B

ACTUAL SIZE

UNI-PAC 2B

13.5

5.8

4.0

2.0

16.0

1.75

14.2

1.5 Dia.

7.7

SECTION A-A

28.4

Direction of feed

Dimensions in millimeters.

19.6

5.9

UP3B

15.3

11.1

4.0

2.0

24.0

1.75

14.2

1.5 Dia.

9.0

SECTION A-A

28.4

Direction of feed

Dimensions in millimeters.

22.3

7.2

UP4B

ACTUAL SIZE

UNI-PAC 3B

ACTUAL SIZE

UNI-PAC 4B

6.4

2.3

4.0

2.0

12.0

1.75

7.5

1.5 Dia.

5.6

4.4

SECTION A-A

9.3

Direction of feed

Dimensions in millimeters.

UP1B

ACTUAL SIZE

UNI-PAC 1B

Parts packaged on 13" Diameter reel,

900 parts per reel.

Parts packaged on 13" Diameter reel,

550 parts per reel.

Parts packaged on 13" Diameter reel,

450 parts per reel.

Parts packaged on 13" Diameter reel,

275 parts per reel.
