DRQ73-331-R datasheet(1/10 Pages) EATON

tên linh kiện	DRQ73-331-R

Giải thích chi tiết về linh kiện	Dual winding, high power density, shielded drum core power inductors

PDF	10 Pages

Scroll/Zoom	100%

nhà sản xuất	EATON [Eaton All Rights Reserved.]

Trang chủ	https://www.eaton.com

Logo

1 / 10 page

Technical Data DS4311

Effective September 2017

Supersedes April 2014

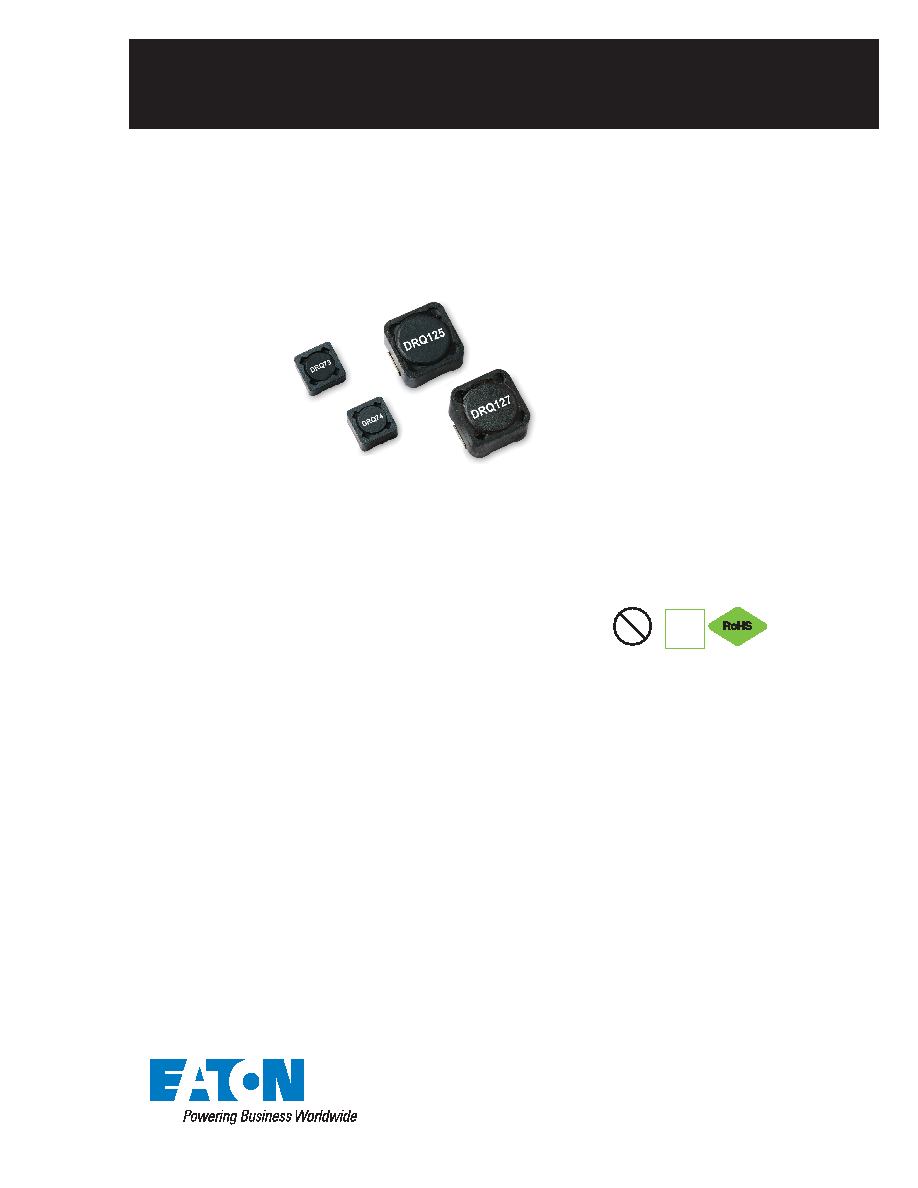

Product features

•

Dual winding inductors that can be used as

either a single inductor, or in coupled

inductor/transformer applications

(1:1 turns ratio)

•

Four sizes of shielded drum core inductors

•

Windings can be connected in series or

parallel, offering a broad range of inductance

and current ratings

•

Peak current ratings from 0.13 A to 56 A

•

RMS current ratings from 0.128 A to 17.9 A

•

Inductance ratings from 0.33 µH to 4.02 mH

•

200 Vac Isolation between windings

•

Ferrite core material

Applications

•

Storage temperature range (component):

-40 °C to +125 °C

•

Operating temperature range: -40 °C to +125 °C

(ambient plus self-temperature rise)

•

Solder reflow temperature:

J-STD-020 (latest revision) compliant

DRQ

Dual winding, high power density, shielded drum core

power inductors

Pb HALOGEN

HF

FREE

•

Desktop and servers

•

DVD and media players

•

Portable and handheld devices

•

LCD panels

•

As a transformer: SEPIC, flyback

•

As an inductor: buck, boost, coupled inductor

•

DC-DC Converters

•

VRM inductor for CPU and DDR power

supplies

•

Input and output filter chokes

Environmental data
