6125TD

Time-delay surface mount fuse

Technical Data 2530

Effective May 2017

2.6

3.0

(0.102)

(0.118)

4.0

(0.157)

8.6

(0.338)

Land Pattern

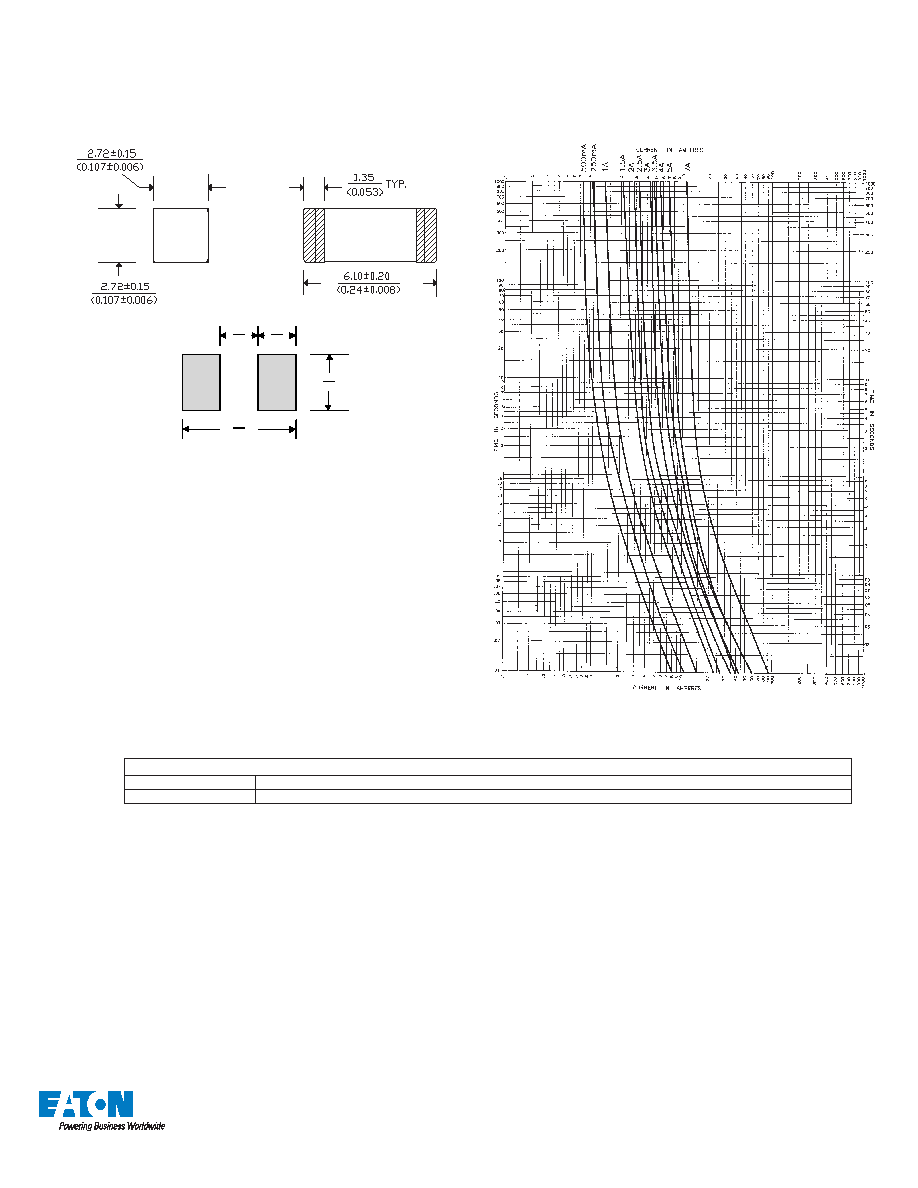

TIME CURRENT CURVE

PACKAGING CODE

Packaging Code

Description

TR1

1000 pieces of fuses on 12mm tape-and-reel on a 7 inch (177mm) reel per EIA Standard 481
