CPL,CPLA, and CPLE

Multi-phase power inductors

www.eaton.com/elx

8.50 Max

Side View

wwllyy R

CPLx-2-50

12

3

4

18.0±0.5

3

2

14

7.0

10.0

8.0

5.8

3.2

1.0

4.80 Max

Bottom View

Front View

Top View

8.50 Max

CPLx-3-50

12

3

4

56

27.0±0.5

3

4

4.80 Max

7.0

10.0

3.2

5.8

8.0

1.0

wwllyy R

36.0±0.5

8.50 Max

4.80 Max

12

3

4

56

78

CPLx-4-50

12

4

36

5

7

8

7.0

10.0

3.2

5.8

8.0

1.0

wwllyy R

CPLx-5-50

12

3

4

56

7

8

45.0±0.5

Front View

38

7

4

4.80 Max

9

10

7.0

9

10

10.0

3.2

5.8

8.0

1.0

wwllyy R

Bottom View

TopView

8.50 Max

Side View

CPLx-6-50

12

3

4

56

78

54.2±0.5

3

4

4.80 Max

910

10.0

3.2

5.8

8.0

1.0

wwllyy R

7.0

11

12

8.50 Max

Pin #1

Pin #1

Pin #1

Pin #1

Pin #1

12

56

12

56

12

56

78

9101112

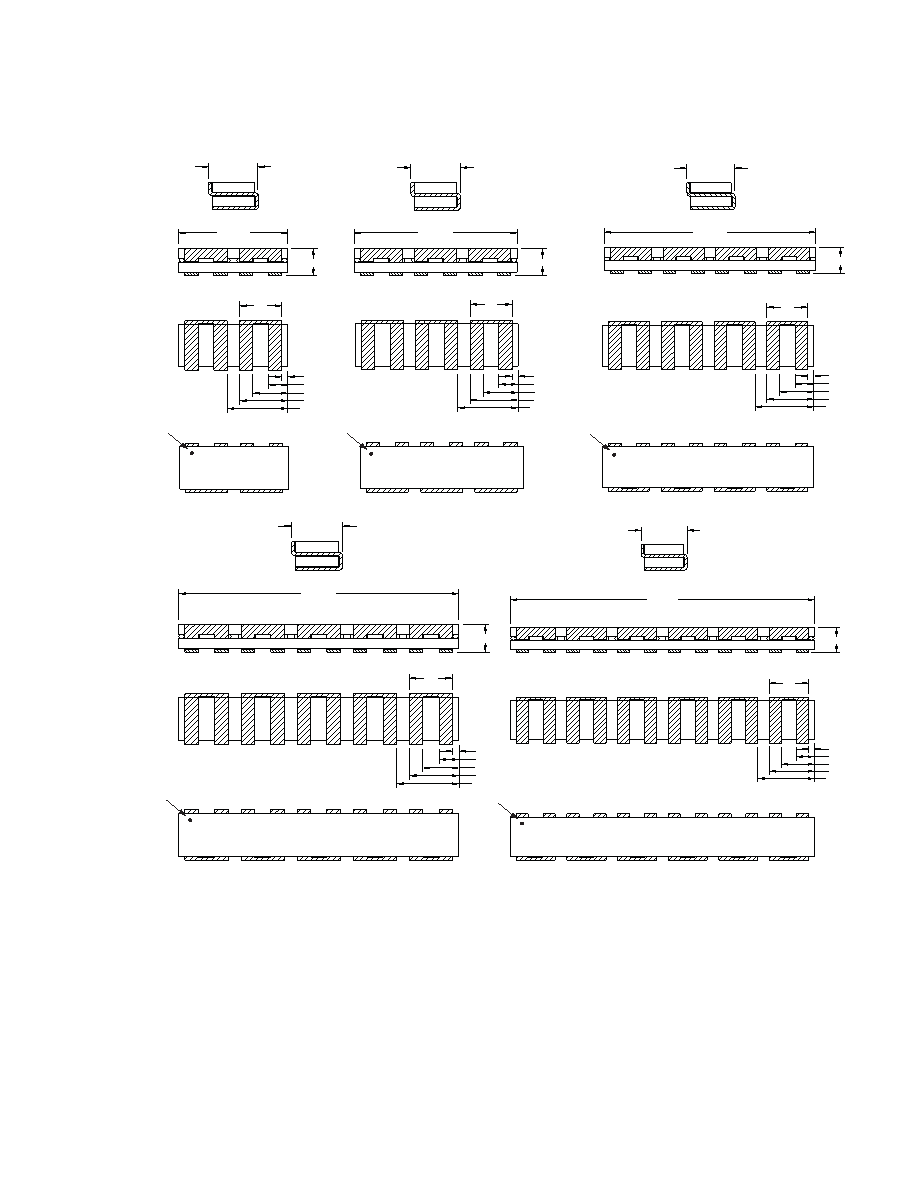

Dimensions (mm)

Part marking: Pin 1 dot, CPL/CPLA/CPLE= (product code and size), -2,-3,-4,-5, -6= (number of phases), -50 = (inductance value per phase in nH)

wwllyy = date code, R = revision level

Tolerances are ±0.20 millimeters unless stated otherwise

All soldering surfaces to be coplanar within 0.15 millimeter

Do not route traces or vias underneath the inductor
