Your Perfect Inductor

Rev.1001

Multilayer Ceramic Chip Inductor (CI SERIES)

●FEATURE

1. Support operating frequency bands up to 10GHz

2. Provides high Q characteristics

3. Monolithic structure for high reliability

●Applications

1. Mobile phones

2. Cordless phone or pagers and Other various electronic appliances

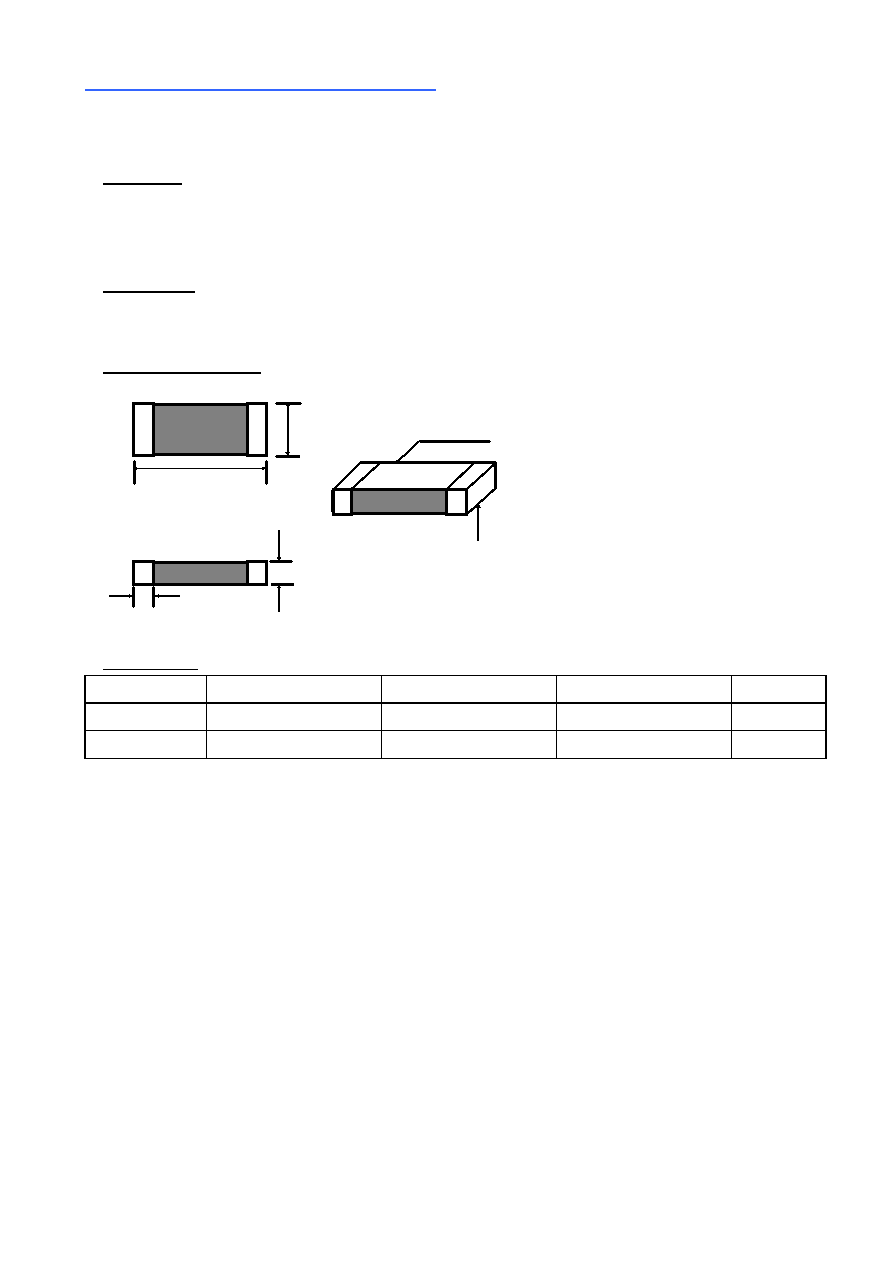

●Shape and Dimension

●Specification

Dimension in m/m(in inches)

TYPE

A

B

C

D

100505(0402)

1.0

±0.05(0.039±0.002)

0.50

±0.05(0.019±0.002)

0.5

±0.05(0.019±0.002)

0.2

±0.10

160808(0603)

1.6

±0.15(0.063±0.006)

0.80

±0.15(0.031±0.006)

0.8

±0.15(0.031±0.006)

0.5

±0.30

Note1: Test equipment: HP 4291A Impedance analyzer

Note2: Inductance tolerance: S: ±0.3nH; J: ±5%; K: ±10%

Note3.Packaging: Taping ; Quantity: CI100505:10000 Pieces/reel ; CI160808:4000 Pieces/reel

B

A

C

D

Ferrite

TERMINAL ELECTRODE

CERAMIC
