FENG-JUI TECHNOLOGY CO., LTD

CERAMIC CHIP INDUCTOR-RoHS

Your Perfect Inductor

Rev.1601

CFL0805C TYPE

●FEATURE

1. High frequency

2. Highest possible SRF as well as excellent Q values

●Applications

1. Pager, Cordless phone and High freq. communication products

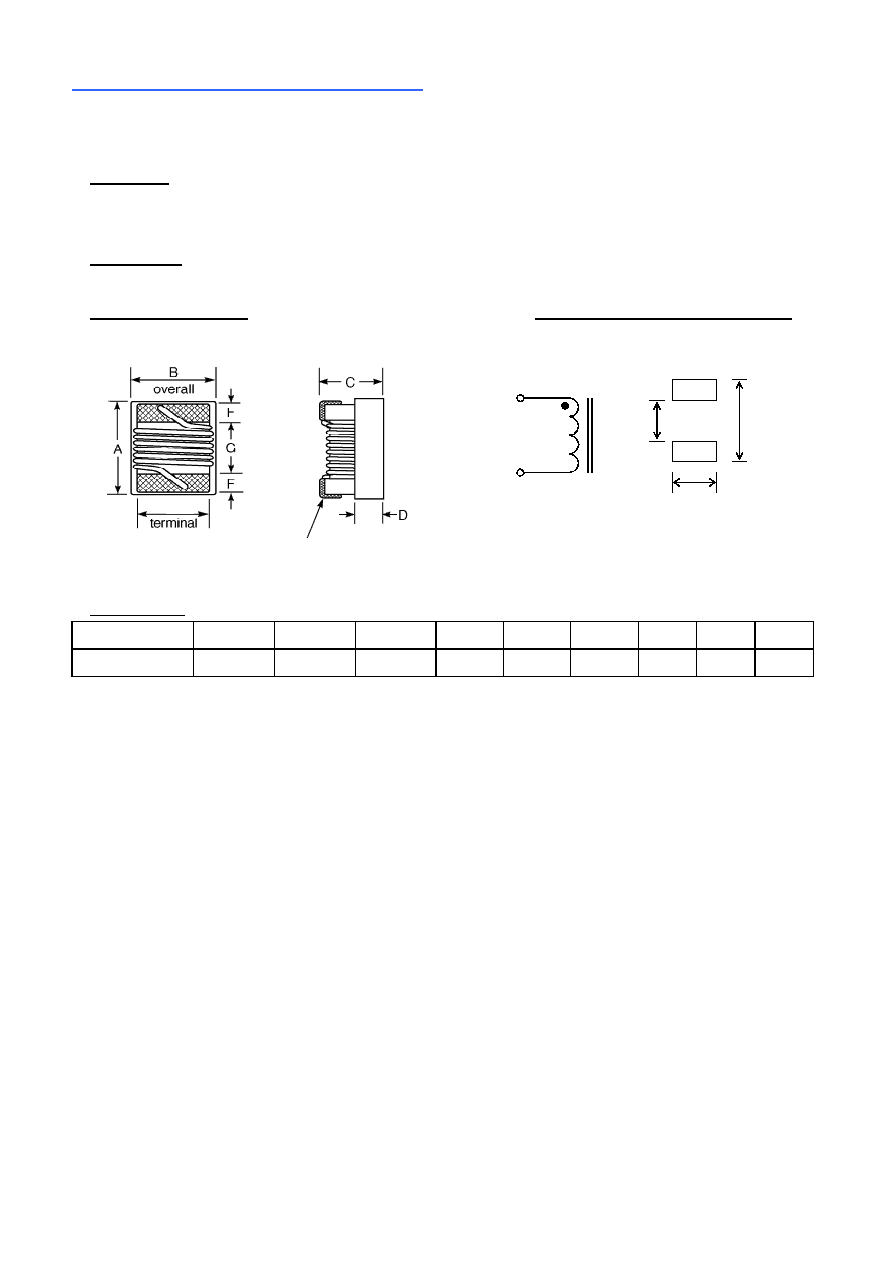

●Shape and Dimension

●Schematics and Land Patterns(mm)

●Specification

Dimension in m/m

TYPE

A(Max)

B(Max)

C(Max)

D

F

G

D1

D2

D3

CFL0805C

2.40

1.60

1.40

0.51

0.44

1.45

2.80

0.76

1.78

Note1. Measurement equipment of electrical : HP E4991A

Note2. Measurement ambient temperature of L, DCR and IDC : at 25℃

Note3. Inductance tolerance: B: ±0.2nH ; S: ±0.3nH ; G: ±2% ; J: ±5% ; K: ±5%

Note4. Ordering code : Part number + Inductance tolerance + customer code(if necessary)

Note5. Customer code:T1: CFL1008C can use no wire cross over when over 470nH

Note5. This specification might be changed without notice due to under developing and improving.

Thank you for your understanding.

ELECTRODE TERMINAL

D1

D3

D2
