8

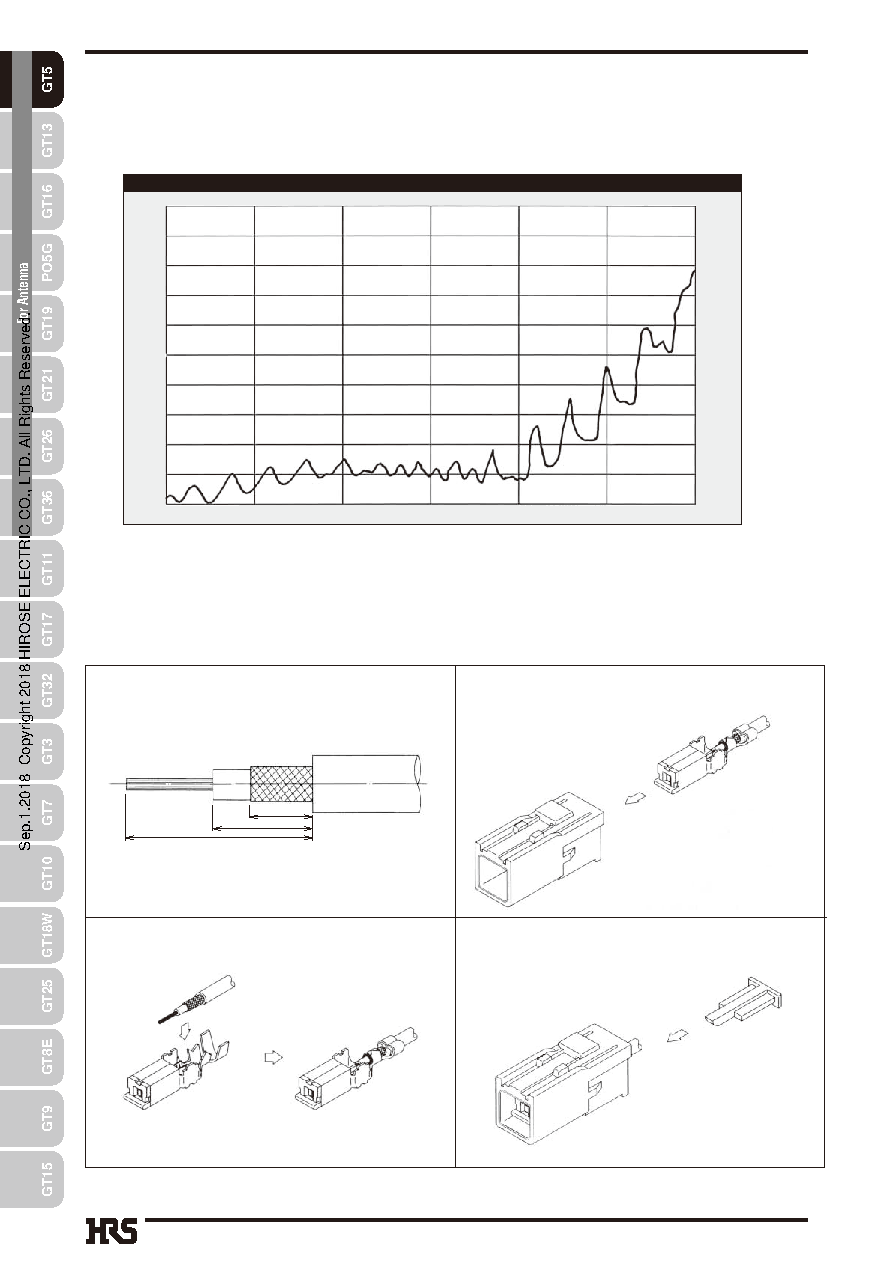

B Test Data (Using 1.5D-2V Type cable)

B Termination sequence

High Frequency Characteristics (V.S.W.R.)

Note : Typical data using fully assemblied and connected GT5-1S-HU and the GT5-1PP-HU.

3.5

9.5

5

3. Insert the terminal in the housing until fully locked.

Push in the terminal with cable in the housing until

the housing lance locked.

4. Fully insert the retainer.

Push in the retainer until locked.

2. Crimp the cable to the terminal.

1. Strip the cable

3.0

2.8

2.6

2.4

2.2

2.0

1.8

1.6

1.4

1.2

1

1.0

2.0
