UNISONIC TECHNOLOGIES CO., LTD

LR2965

CMOS IC

www.unisonic.com.tw

1 of 5

Copyright © 2017 Unisonic Technologies Co., Ltd

QW-R102-061.B

1.5A, LOW DROPOUT

REGULATOR WITH POWER

GOOD



DESCRIPTION

The UTC LR2965 is CMOS-based positive voltage and a very

low dropout regulator IC that minimum input voltage is 2.5V and is

capable of delivering the continuous output load current up to 1.5A.

It has features of low dropout (maximum 300mV at 1A), a very

low quiescent current (typically 300uA at 0.1A) and very high

PSRR up to 86dB at 1A load current.

external resistor divider and it has ±2% accuracy through all

temperature ranges include the line as well as load variations. It is

allowed to use a small 4.7μF MLCC input and output capacitor to

deliver the current with the stable operation.

Built-in Soft-Start function reduces the inrush current and the

other features are include over current protection (OCP),

short-circuit protection (SCP), and thermal shut down protection

(TSD).



FEATURES

* Input Voltage Range: 2.5V~6.0V

* Supply Current : (Typ.) 300uA

* Current limit : (Min.) 1.8A

* Adjustable Output from 0.5V

* Compatible with MLCC Capacitors

* Built-in Soft-Start Limits Inrush Current

* Built-in Thermal Shutdown Protection

* Built-in Over Current & Short Circuit Protection



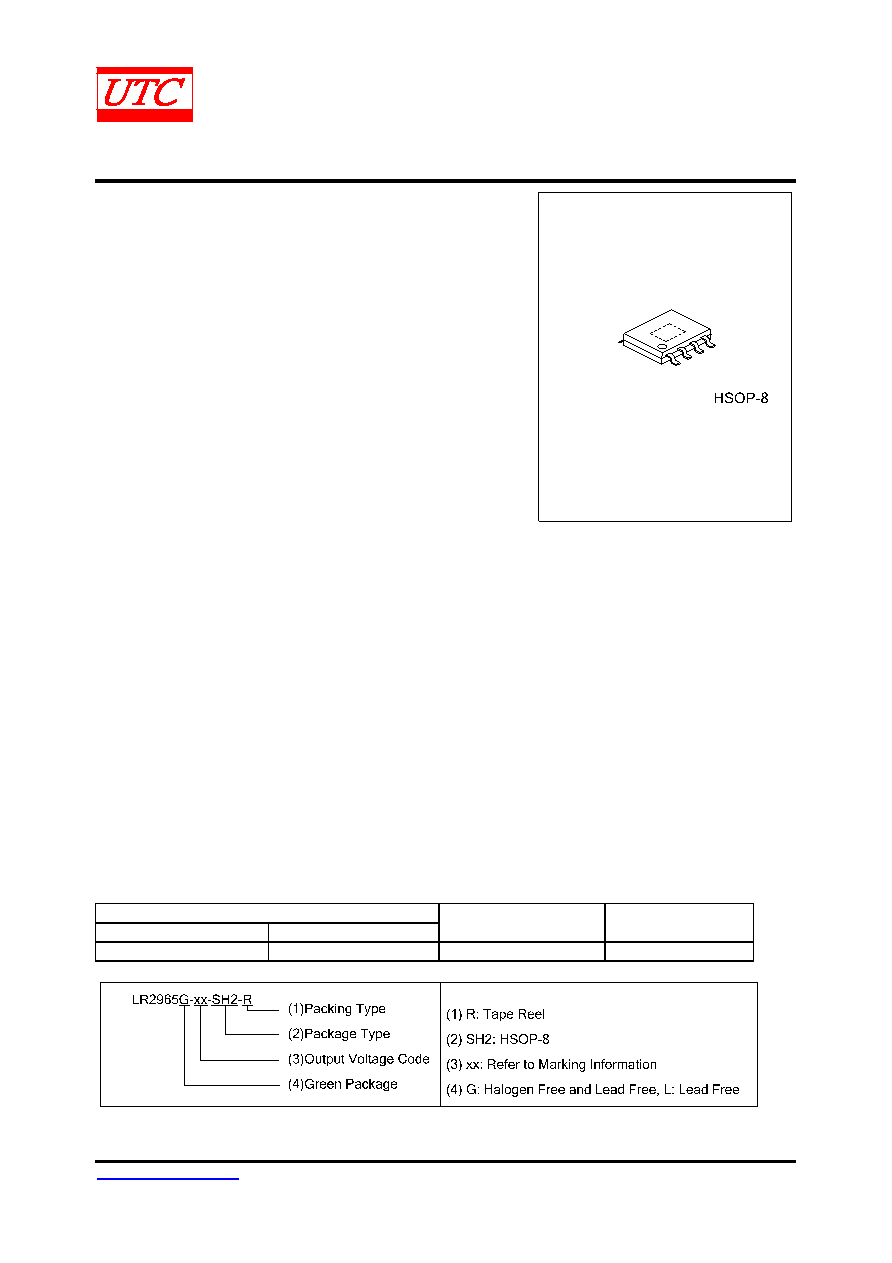

ORDERING INFORMATION

Ordering Number

Lead Free

Halogen Free

Package

Packing

LR2965L-xx-SH2-R

LR2965G-xx-SH2-R

HSOP-8

Tape Reel

Note: xx: Output Voltage, refer to Marking Information.
