11 / 20 page

Rev. 3.5

RI-RFM-006A

TIRIS RF-Module IC for Automotive

Page 10 of 19

! Input-Output Specifications

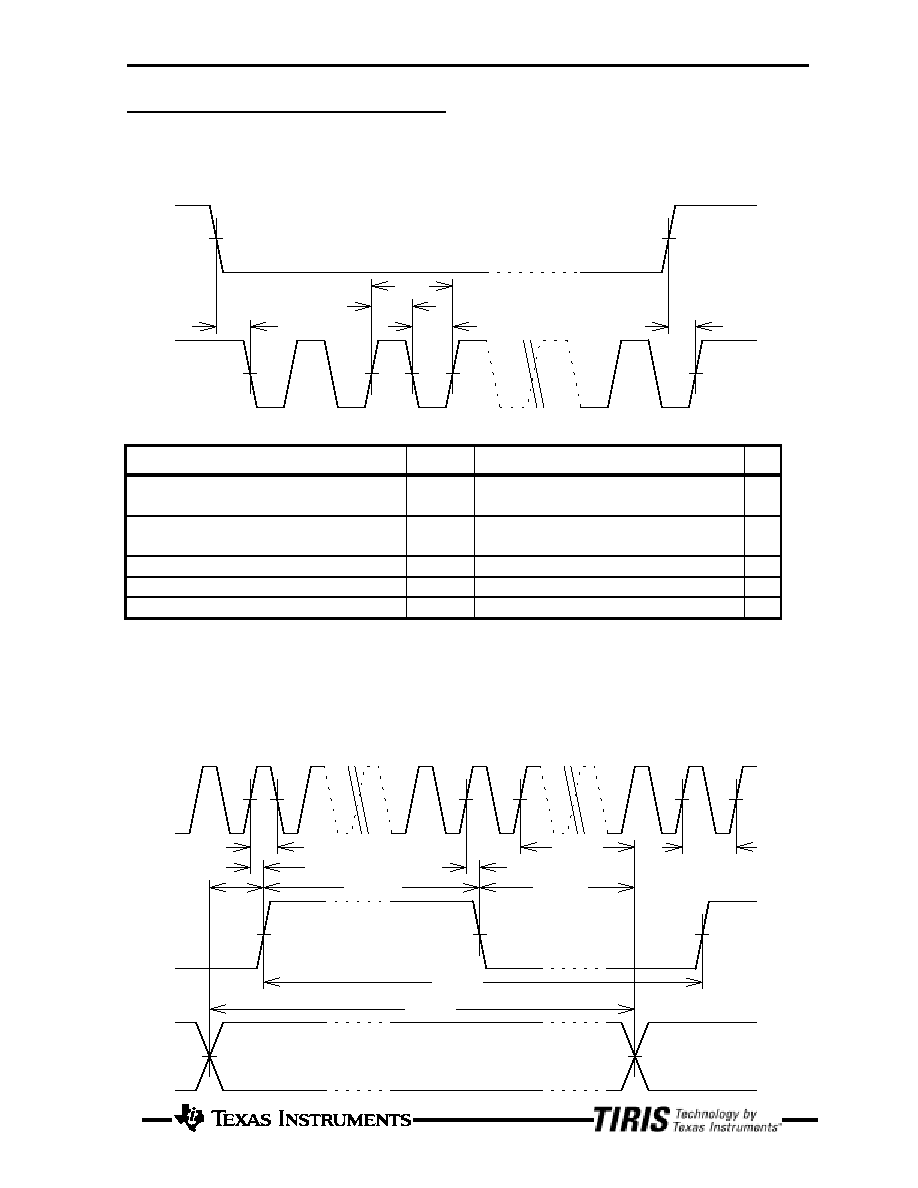

Transmitter Signal I/O Timing

TXCT-

TXHI+TXLO

tdl(TX)

tc(TX)

twh(TX)

twl(TX)

tdh(TX)

TX=

Item

Signal

Min.

Typical

Max.

Unit

Delay time between TXCT- and TX

trailing edges

tdl(TX)

64Tc(OSC) nS

Delay time between TXCT- and TX

leading edges

tdh(TX)

1Tc(OSC) nS

TX cycle time

tc(TX)

128Tc(OSC)

TX low level pulse duration

twl(TX)

64Tc(OSC)

TX high level pulse duration

twh(TX)

64Tc(OSC)

Note: “Tc(osc)” denotes the master clock cycle of this RF-module IC and its normal value is

specified at 56.3 ns (1/0.0171776). The same applies hereinafter. “TX” is defined as a

composite signal of “TXLO” and “TXHI” signals.

Receiver Signal I/O Timing

A3OP

RXCK

RXDT-

tdh(RXCK)

tdl(RXCK)

twh(RXCK)

tc(RXCK)

ts(RXDT)

tw(RXDT)

th(RXDT)

twh(A3OP)

DATA VALID

tc(A3OP)

td(RXDT)
