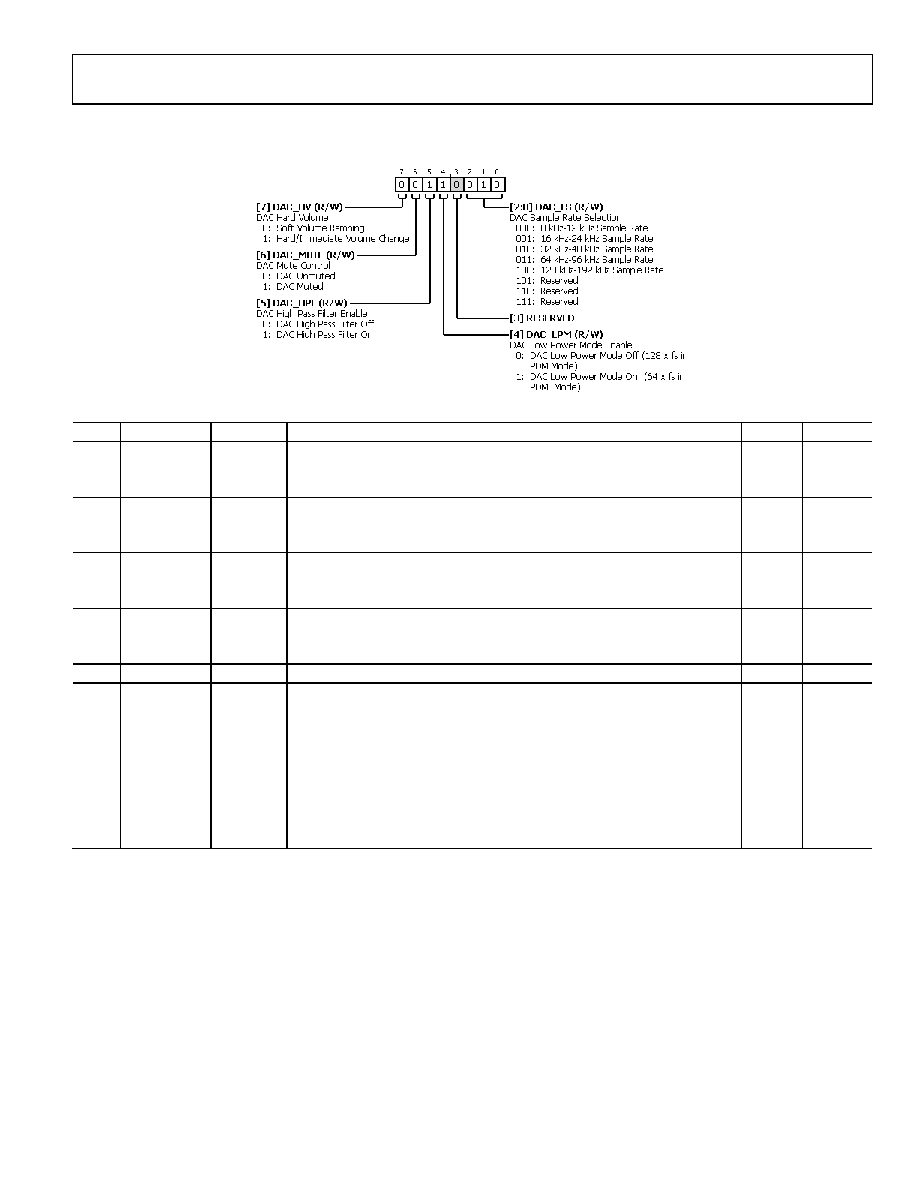

Data Sheet
SSM4567
Rev. 0| Page 35 of 52
DAC CONTROL REGISTER
Address: 0x02, Reset: 0x32, Name: DAC_CTRL
Table 28. Bit Descriptions for DAC_CTRL
Bits
Bit Name
Settings
Description
Reset
Access
7
DAC_HV
DAC Hard Volume
0x0
R/W
0
Soft Volume Ramping
1
Hard/Immediate Volume Change
6
DAC_MUTE
DAC Mute Control
0x0
R/W
0
DAC Unmuted
1
DAC Muted
5
DAC_HPF
DAC High-Pass Filter Enable
0x1
R/W
0
DAC High-Pass Filter Off
1
DAC High-Pass Filter On
4
DAC_LPM
DAC Low Power Mode Enable
0x1
R/W
0
DAC Low Power Mode Off (128 × fs in PDM Mode)
1
DAC Low Power Mode On (64 × fs in PDM Mode)
3
RESERVED
Reserved.
0x0
R/W
[2:0]
DAC_FS
DAC Sample Rate Selection
0x2
R/W
000
8 kHz to 12 kHz Sample Rate
001
16 kHz to 24 kHz Sample Rate
010
32 kHz to 48 kHz Sample Rate
011
64 kHz to 96 kHz Sample Rate
100
128 kHz to 192 kHz Sample Rate
101
Reserved
110
Reserved
111
Reserved
