VCXO2HV datasheet(2/4 Pages) GOLLEDGE

2 / 4 page

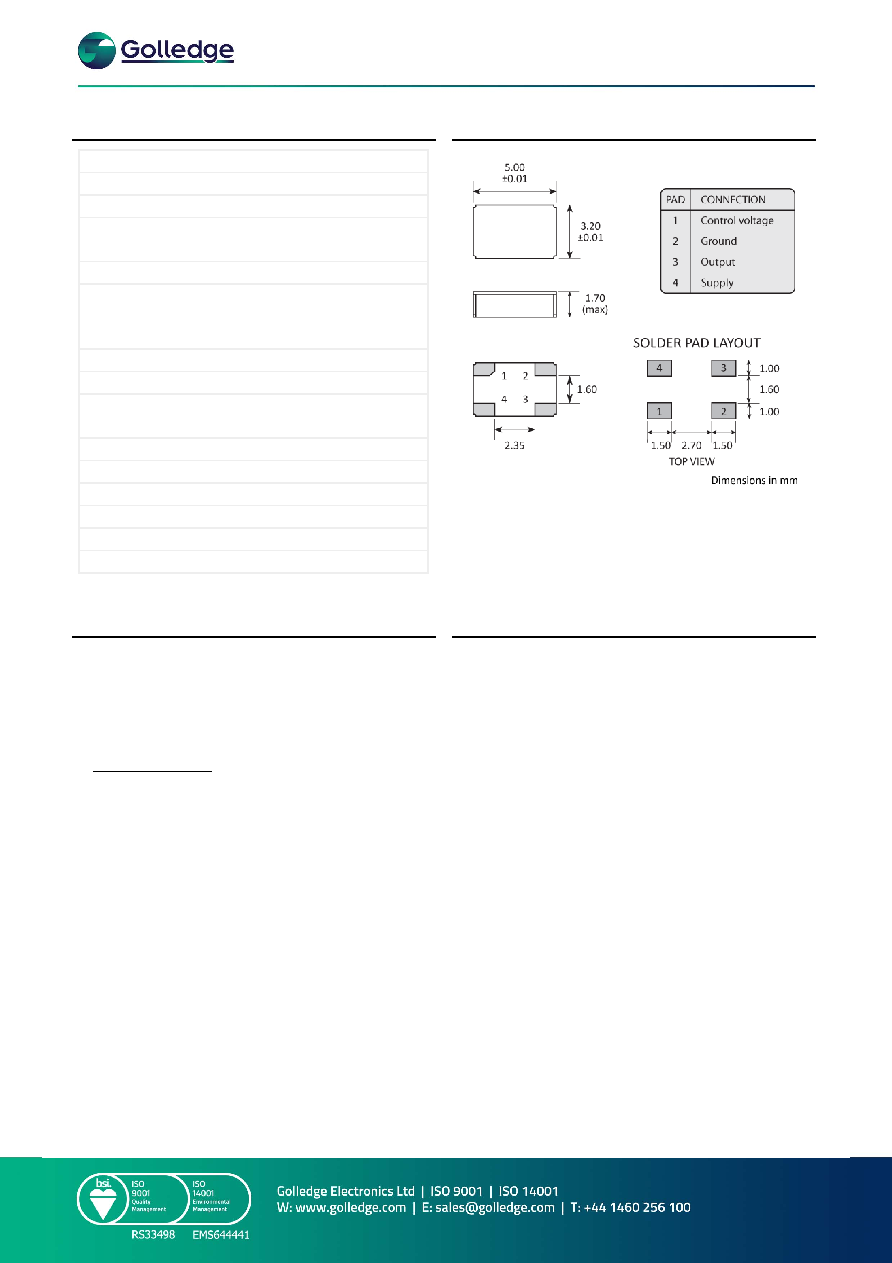

VCXO2HV 2/4

v1.0

Frequency range

40.0 ~ 130MHz

Dimensions

5.0 x 3.2 x 1.7mm

Supply voltage (V )

+3.3V (±5%)

Voltage control (V )

+1.65V ±1.65V

Positive slope, 10% linearity

Storage temperature range -65 to +125°C

Supply current (no load)

10mA max @ 40.0MHz

20mA max ≤100.0MHz

25mA max @ 130MHz

Driving ability

CMOS

Load

3pF min, 27pF max

Logic levels

‘0’ level = +0.4V max

‘1’ level = V -0.5V min

Start up time

5ms max

Waveform symmetry

40:60 max @ 50%V

Rise / fall times

2ns max (@15pF)

Shock resistance

5,000g, 0.3ms ½-sine

Vibration resistance

20g rms 10.0 ~ 2,000Hz

Soldering condition

260°C, 10 sec max
