Data Sheet

AD8338

Rev. B | Page 5 of 19

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

INPR

INPD

INMD

INMR

OUTP

FBKP

OUTM

FBKM

NOTES

TO A QUIET ANALOG GROUND.

12

11

10

1

3

4

9

2

AD8338

TOP VIEW

(Not to Scale)

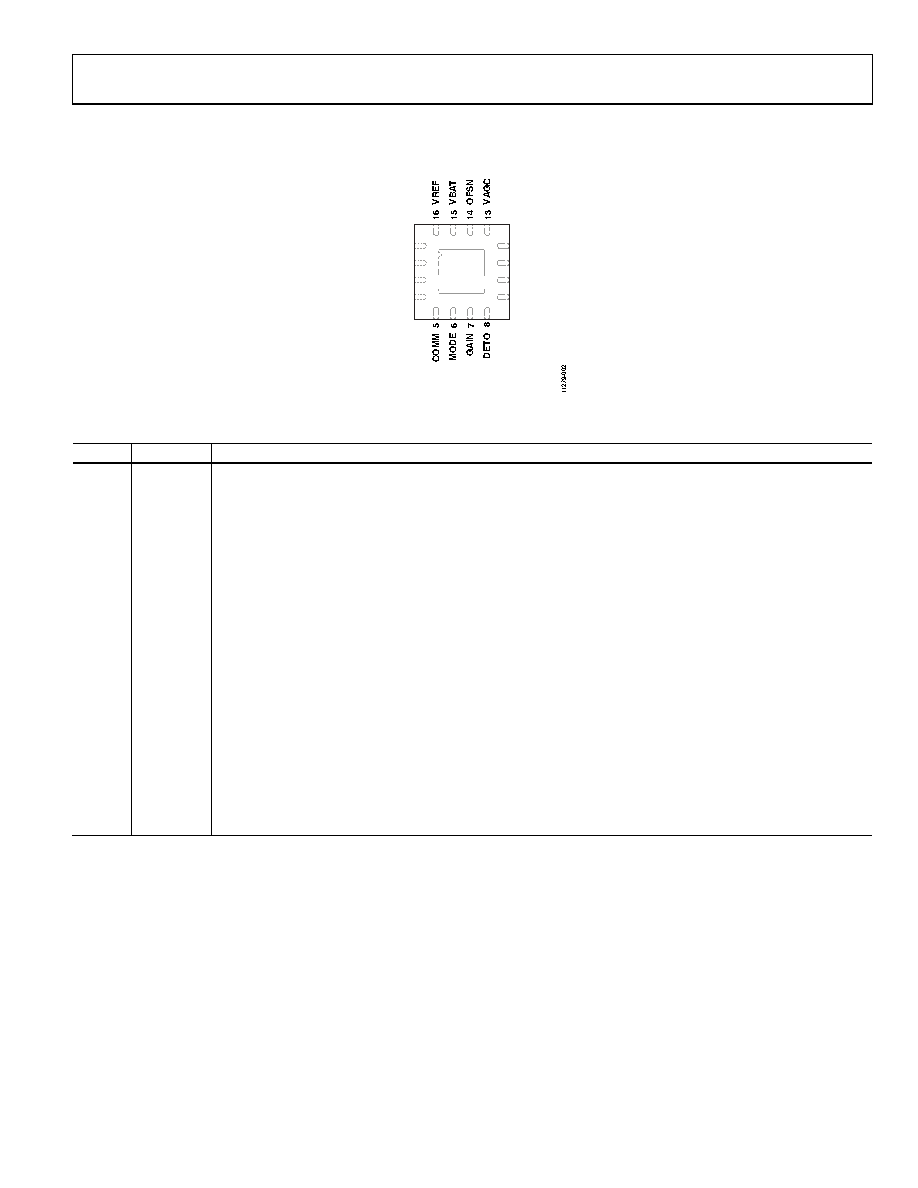

Figure 3. Pin Configuration

Table 4. Pin Function Descriptions

Pin No.

Mnemonic

Description

0

EPAD

Exposed Pad. The exposed pad must be tied to a quiet analog ground.

1

INPR

Positive 500 Ω Resistor Input for Voltage Input Applications.

2

INPD

Positive Input for Current Input Applications.

3

INMD

Negative Input for Current Input Applications.

4

INMR

Negative 500 Ω Resistor Input for Voltage Input Applications.

5

COMM

Ground.

6

MODE

Gain Mode. This pin selects positive or negative gain slope for gain control. When this pin is tied to VBAT, the gain

of the AD8338 increases proportionally with an increase of the voltage on the GAIN pin. When this pin is tied to

COMM, the gain decreases with an increase of the voltage on the GAIN pin.

7

GAIN

Gain Control Input, 12.5 mV/dB or 80 dB/V.

8

DETO

Detector Output Terminal, ±10 µA. If the AGC feature is not used, tie DETO to COMM.

9

FBKM

Negative Feedback Node. For more information, see the FBKP, FBKM, OUTP, and OUTM Pins section.

10

OUTM

Negative Output.

11

OUTP

Positive Output.

12

FBKP

Positive Feedback Node. For more information, see the FBKP, FBKM, OUTP, and OUTM Pins section.

13

VAGC

Voltage for Automatic Gain Control Circuit. This pin controls the target rms output voltage for the AGC circuit. For

more information, see the AGC Circuit, VAGC Pin section. If the AGC feature is not used, tie VAGC to VREF.

14

OFSN

Offset Null Terminal. For more information, see the Offset Correction Circuit, OFSN Pin section. If the offset null

feature is not used, tie OFSN to ground; otherwise, a capacitor to VREF is used to set the offset null high-pass corner.

15

VBAT

Positive Supply Voltage.

16

VREF

Internal 1.5 V Voltage Reference.
