UNI SONI C TECHNOLOGI ES CO., LTD

LD2985

LINEAR INTEGRATED CIRCUIT

www.unisonic.com.tw

1 of 15

Copyright © 2017 Unisonic Technologies Co., Ltd

QW-R102-024.M

V ERY LOW DROP AN D LOW

N OI SE V OLT AGE REGU LAT OR

LOW ESR CAP. COM PAT I BLE,

WI T H I N H I BI T FU N CT I ON



DESCRI PT I ON

The UTC LD2985 is a 150mA fixed output voltage regulator. The

ultra low drop voltage and the low quiescent current make them

particularly suitable for low noise, low power applications, and in

battery powered systems. In sleep mode quiescent current is less

than 1

μA when INHIBIT pin is pulled low. Shutdown Logic Control

Function is available on pin 3 (TTL compatible). This means that

when the device is used as local regulator, it is possible to put a part

of the board in standby, decreasing the total power consumption.

pin and GND reduce the noise to 30

μVrms.

Typical applications are in cellular phone, palmtop laptop

computer,

personal

digital

assistant

(PDA),

personal

stereo,

camcorder and camera.



FEAT U RES

* Very Low Dropout Voltage (280mV at 150mA and 7mV at 1mA load)

* Very Low Quiescent current

* Output Current up to 150mA

* Logic Controlled Electronic Shutdown

* Output Voltage of 1.5, 1.8, 2.5, 2.8, 2.85, 3, 3.1, 3.2, 3.3, 3.5, 3.6, 3.8, 4, 4.7, 5V

* Internal Current and Thermal Limit

* Low Output Noise Voltage 30

μVrms



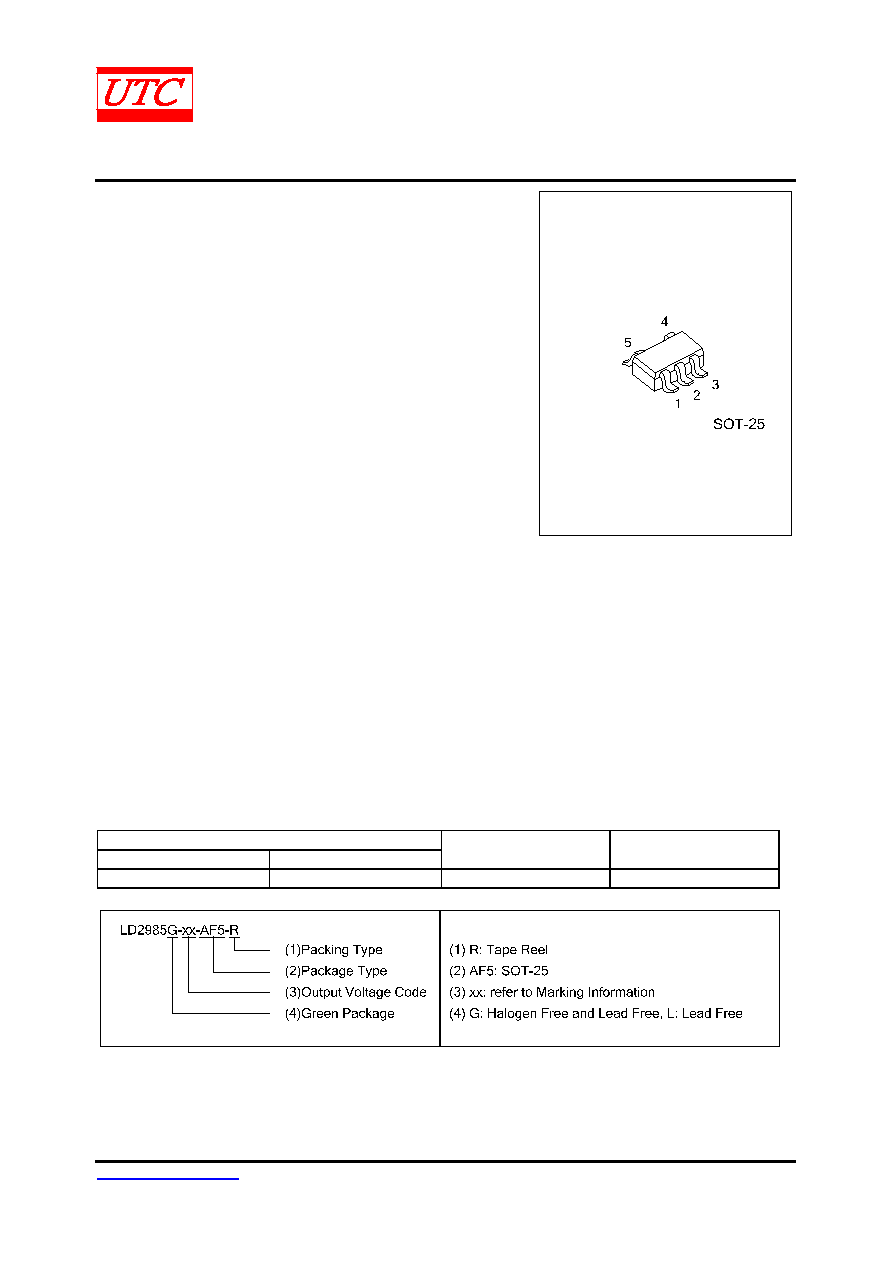

ORDERI N G I N FORM AT I ON

Ordering Number

Lead Free

Halogen Free

Package

Packing

LD2985L-xx-AF5-R

LD2985G-xx-AF5-R

SOT-25

Tape Reel

Note: xx: Output Voltage, refer to Marking Information.
