A3GA-99C2-R datasheet(8/18 Pages) OMRON

8 / 18 page

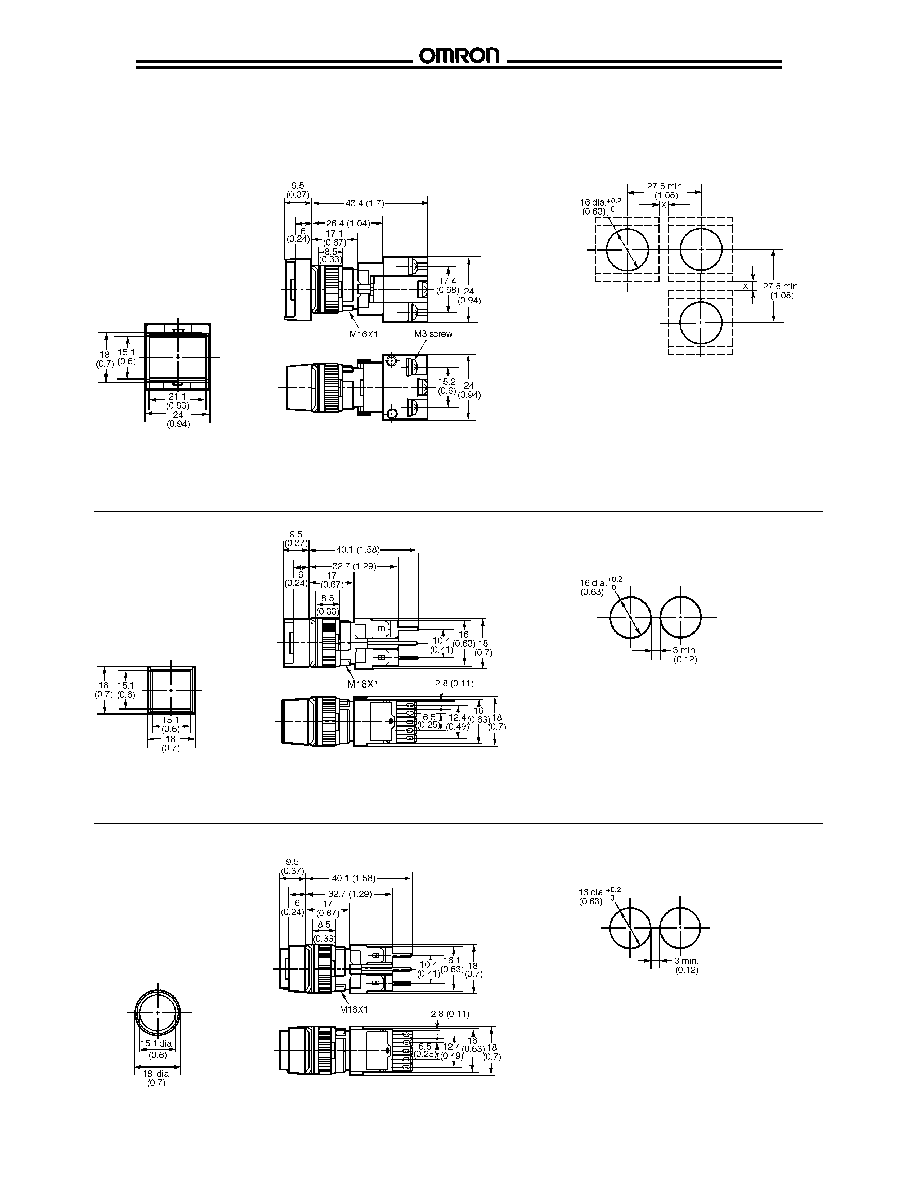

A3G

Square (A3GA)

Panel cutout

with solder terminals

(top view)

Rectangular (A3GJ)

Panel cutout

with screw terminals

(top view)

Round (A3GT)

Panel cutout

with solder terminals

(top view)

s LIGHTED TYPE PUSHBUTTON SWITCHES continued

Unit: mm (inch)

Note: The above panel cutout diagram

applies when the X dimension (the

space between terminals of different

polarity) is maintained at 3.5 mm.

When the X dimension is not

required, switches may be mounted at

24.5 mm for the general-purpose

pushbutton type, or at 26 mm for the

rectangular concave type.

Note: 1. Recommended panel thickness is

0.5 to 5 mm.

2. When using the spring mounting

clip for snap-in mounting, the

panel cutout becomes 16.2 +

0.3 mm

in diameter, and recommended

panel thickness is 0.5 to 3.5 mm.

Dimensions for models with screw terminals

have been omitted. Refer to the dimensions

for the rectangular type.

Dimensions for models with screw terminals

have been omitted. Refer to the dimensions

for the rectangular type.

Note: 1. Recommended panel thickness is

0.5 to 5 mm.

2. When using the spring mounting

clip for snap-in mounting, the

panel cutout becomes 16.2 +

0.3 mm

in diameter, and recommended

panel thickness is 0.5 to 3.5 mm.
