Data Sheet

AD8215

Rev. B | Page 13 of 13

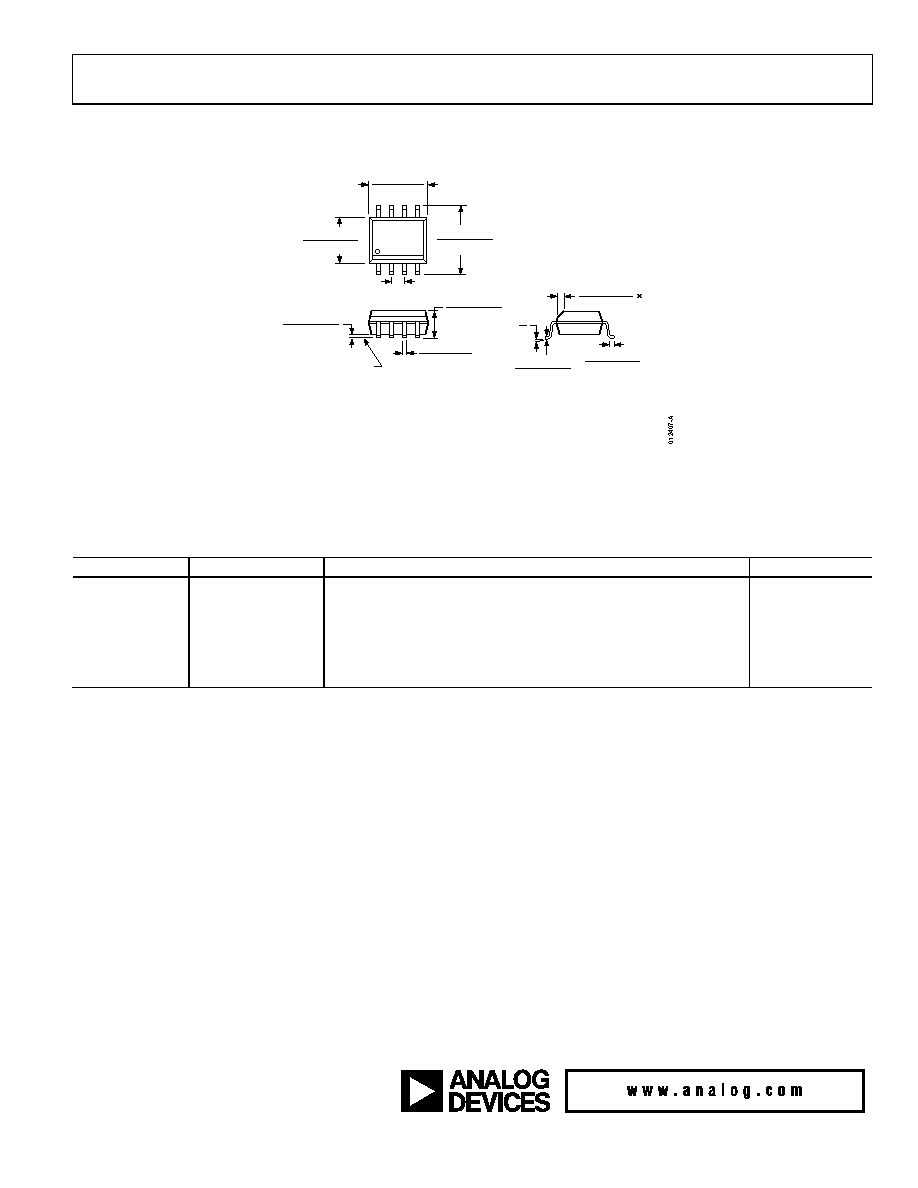

OUTLINE DIMENSIONS

CONTROLLING DIMENSIONS ARE IN MILLIMETERS; INCH DIMENSIONS

(IN PARENTHESES) ARE ROUNDED-OFF MILLIMETER EQUIVALENTS FOR

REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN.

COMPLIANT TO JEDEC STANDARDS MS-012-AA

0.25 (0.0098)

0.17 (0.0067)

1.27 (0.0500)

0.40 (0.0157)

0.50 (0.0196)

0.25 (0.0099)

45°

8°

0°

1.75 (0.0688)

1.35 (0.0532)

SEATING

PLANE

0.25 (0.0098)

0.10 (0.0040)

4

1

85

5.00 (0.1968)

4.80 (0.1890)

4.00 (0.1574)

3.80 (0.1497)

1.27 (0.0500)

BSC

6.20 (0.2441)

5.80 (0.2284)

0.51 (0.0201)

0.31 (0.0122)

COPLANARITY

0.10

Figure 31. 8-Lead Standard Small Outline Package [SOIC_N]

Narrow Body

(R-8)

Dimensions shown in millimeters and (inches)

ORDERING GUIDE

Temperature Range

Package Description

Package Option

AD8215YRZ

−40°C to +125°C

8-Lead Standard Small Outline Package [SOIC_N]

R-8

AD8215YRZ-RL

−40°C to +125°C

8-Lead Standard Small Outline Package [SOIC_N], 13”Tape and Reel

R-8

AD8215YRZ-R7

−40°C to +125°C

8-Lead Standard Small Outline Package [SOIC_N], 7”Tape and Reel

R-8

AD8215WYRZ

−40°C to +125°C

8-Lead Standard Small Outline Package [SOIC_N]

R-8

AD8215WYRZ-R7

−40°C to +125°C

8-Lead Standard Small Outline Package [SOIC_N], 7”Tape and Reel

R-8

AD8215WYRZ-RL

−40°C to +125°C

8-Lead Standard Small Outline Package [SOIC_N], 13”Tape and Reel

R-8

AUTOMOTIVE PRODUCTS

The AD8215WYRZ models are available with controlled manufacturing to support the quality and reliability requirements of automotive

applications. Note that these automotive models may have specifications that differ from the commercial models; therefore designers

should review the Specifications section of this data sheet carefully. Only the automotive grade products shown are available for use in

automotive applications. Contact your local Analog Devices account representative for specific product ordering information and to

obtain the specific Automotive Reliability reports for these models.

©2008–2016 Analog Devices, Inc. All rights reserved. Trademarks and

registered trademarks are the property of their respective owners.

D07203-0-12/16(B)
