ISA-WELD® // PRECISION RESISTORS

Isabellenhütte Heusler GmbH & Co. KG // sales.components@isabellenhuette.de // Issue 21-February-2018

BVT (2512)

Specification

Parameters

Test conditions

Specified values

Temperature Cycling

2000 cycles (-55 °C to +150 °C)

±0.5%

Low Temperature Storage and Operation

-65 °C for 24 h

±0.1%

Resistance to Soldering Heat

260 °C for 10 sec / 8h steam aging

n.a.

Moisture Resistance

MIL-STD-202 method 106

±0.2%

Mechanical Shock

100 g, 6 ms half sine

±0.2%

Vibration, High Frequency

20 g, 10-2000 Hz

±0.2%

Operational Life

2000 h, T

K max at nominal load

±1.0%, T

K = 140 °C

High Temperature Exposure

2000 h / 170 °C

±1.0% (in covered condition)*

Bias Humidity

+85 °C, 85 r.F., 1000 h

±0.5%

Tape and reel information

Specification

DIN EN 60286-3

Tape width

Reel size

inch

Parts per reel

pcs

5000

Packaging weight

453

* for MANGANIN® and ZERANIN®30

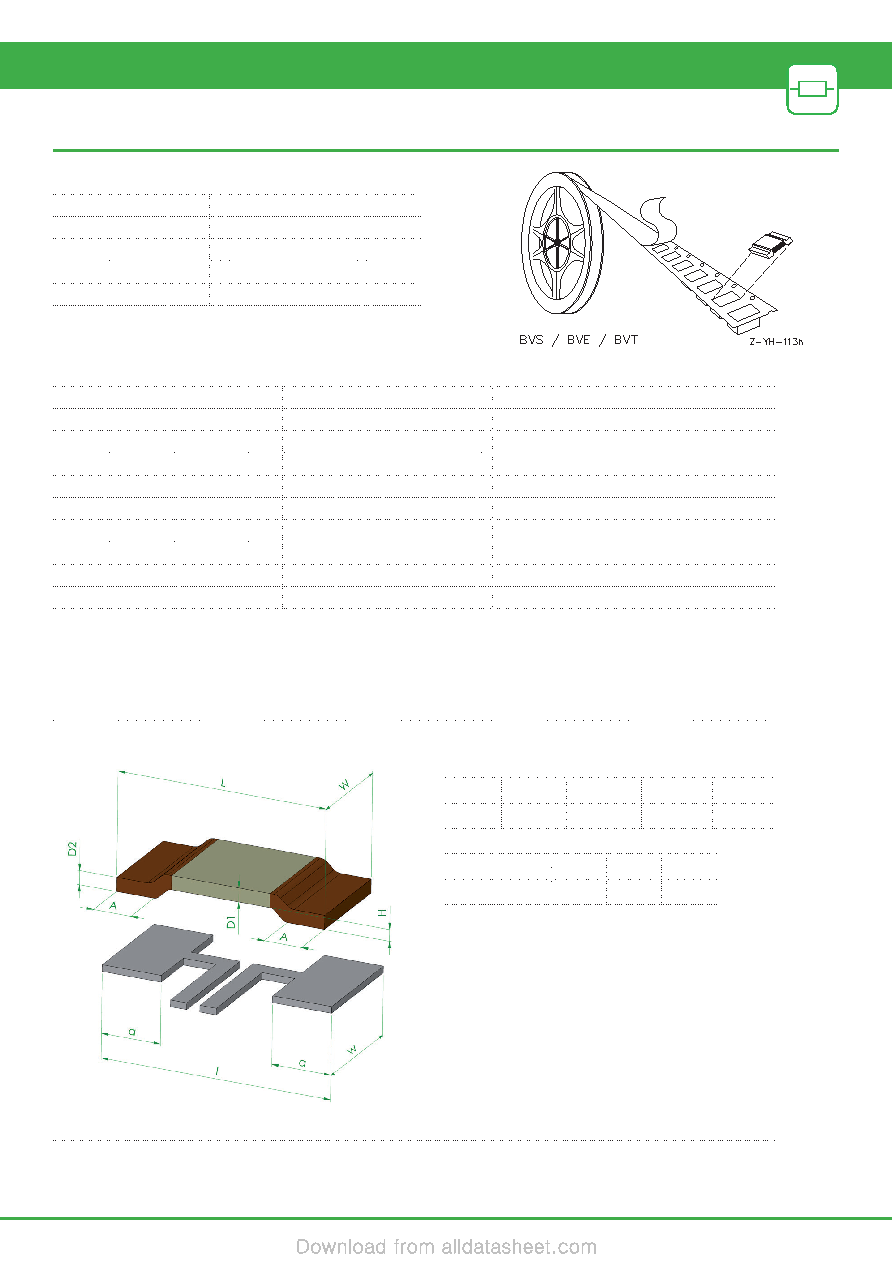

Mechanical dimensions and pcb-layout proposal (Reflow-soldering) [mm] // Drawing no. Z-YE-968a

Type

BVT

6.35 ±0.15 3.05 ±0.2

0.35 ±0.03 1.14 -0.4

Solder pad type l

BVT

7.0

3.4

1.8

Recommended surface mount soldering methods

Reflow-, IR- and vacuum soldering
