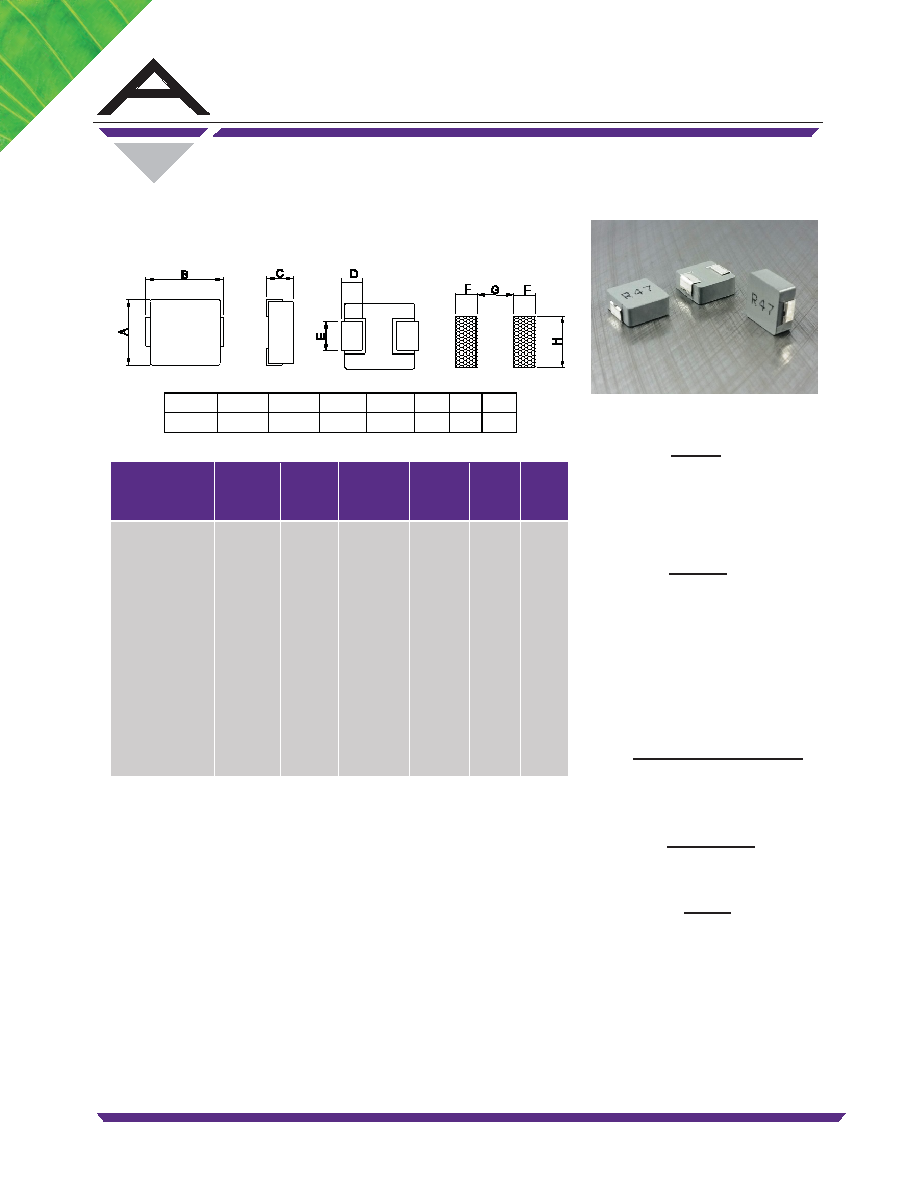

SMD Shielded Flat Wire Power Choke

15

ALLIED COMPONENTS INTERNATIONAL

949-356-1780

www.alliedcomponents.com

RoHS

Revised 07/18/2017

Pre-Heat: 160ºC ±10°C

Test Equipment

(L): HP4284A LCR meter

Resistance to Soldering Heat

Solder Heat Resistance: 260ºC ± 5ºC for 10±1 sec.

DCR: Milli-ohm meter

Temp: 85°C ± 2°C

Physical

Packaging: 1500pcs per 13 inch reel

Marking: EIA Inductance Code

All specifications subject to change without notice.

Allied

Part

Number

Inductance

(µH)

Irms

(A)

Test

Frequency

(KHz, 0.25V)

Tolerance

(±%)

DCR

(mΩ)

Max

32.5

23.0

20.0

17.5

16.5

15.5

13.0

11.0

9.0

8.0

6.0

5.5

4.5

4.0

3.0

Isat

(A)

Typ

PCSFW630B

PCSFW630B-R10M

PCSFW630B-R22M

PCSFW630B-R33M

PCSFW630B-R47M

PCSFW630B-R56M

PCSFW630B-R68M

PCSFW630B-R82M

PCSFW630B-1R0M

PCSFW630B-1R5M

PCSFW630B-2R2M

PCSFW630B-3R3M

PCSFW630B-4R7M

PCSFW630B-6R8M

PCSFW630B-8R2M

PCSFW630B-100M

0.10

0.22

0.33

0.47

0.56

0.68

0.82

1.0

1.5

2.2

3.3

4.7

6.8

8.2

10

20

100

1.7

2.8

3.9

4.2

4.5

5.5

8.0

10.0

15.0

20.0

30.0

40.0

60.0

68.0

105.0

60.0

40.0

30.0

26.0

24.5

25.0

24.0

22.0

18.0

14.0

13.5

10.0

8.0

7.5

7.0

100

A

B

C

D

E

F

G

H

6.8 Max

3.0 Max

1.6±0.5

3.5

7.6 Max

2.9±0.5

2.5

3.7

Features

•Magnetically Shielded Construction

Electrical

Inductance Range: 0.10µH to 10µH

Tolerance: 20% over entire range

Operating Temp: -55ºC ~ +125ºC

•Ultra High Saturation Current up to 60A

Test Frequency: 100KHz, 0.25V

•Low DC Resistance

•Expanded operating temp range

•Suitable for pick and place

Storage Temp: -55ºC ~ +125ºC

Irms: Current at which The Temperature would

Rise by Approximately 40°C

Isat: Current at which The Inductance will Drop

by Approximately 25%

Under no condition should the part exceed 125°C

Dimensions: (mm)
