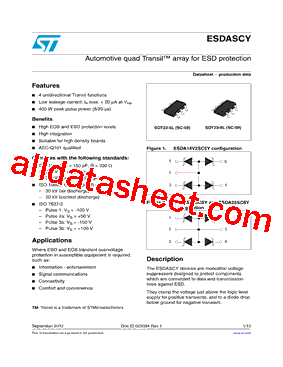

Description
The ESDASCY devices are monolithic voltage suppressors designed to protect components which are connected to data and transmission lines against ESD. They clamp the voltage just above the logic level supply for positive transients, and to a diode drop below ground for negative transient. SOT23-5L (SC-59) SOT23-6L (SC-59) 1 2 3 5 4 1 2 3 6 5 4

Features
■ 4 unidirectional Transil functions
■ Low leakage current: IR max. < 20 µA at VRM
■ 400 W peak pulse power (8/20 µs) Benefits
■ High EOS and ESD protection levels
■ High integration
■ Suitable for high density boards
■ AEC-Q101 qualified Complies with the following standards:
■ ISO 10605: C = 150 pF, R = 330  – 30 kV (air discharge) – 30 kV (contact discharge)
■ ISO 10605: C = 330 pF, R = 330  – 30 kV (air discharge) – 30 kV (contact discharge)
■ ISO 7637-2 – Pulse 1: VS = -100 V – Pulse 2a: VS = +50 V – Pulse 3a: VS = -150 V – Pulse 3b: VS = +100 V
