Section 9 Bus Controller (BSC)
Rev. 2.00 Sep. 24, 2008 Page 267 of 1468
REJ09B0412-0200
9.8.4
Basic Timing
The number of access cycles in the initial cycle (full access) on the burst ROM interface is
determined by the basic bus interface settings in ABWCR, ASTCR, WTCRA, WTCRB, and bits
CSXHn in CSACR (n = 0 to 7). When area 0 or area 1 designated as burst ROM space is read by
the CPU or EXDMAC cluster transfer, the settings in RDNCR and bits CSXTn in CSACR (n = 0
to 7) are ignored.
From one to eight cycles can be selected for the burst cycle, according to the settings of bits
BSTS02 to BSTS00 and BSTS12 to BSTS10 in BROMCR. Wait cycles cannot be inserted. In
addition, 4-word, 8-word, 16-word, or 32-word consecutive burst access can be performed
according to the settings of BSTS01, BSTS00, BSTS11, and BSTS10 bits in BROMCR.
The basic access timing for burst ROM space is shown in figures 9.29 and 9.30.
T
1
T
2
T
1
T
2
T
1
T
2
T
3
B
φ
Upper
address bus
Note: n = 1, 0
Lower
address bus
Data bus
Full access
Burst access
CSn
AS
RD
BS
RD/
WR

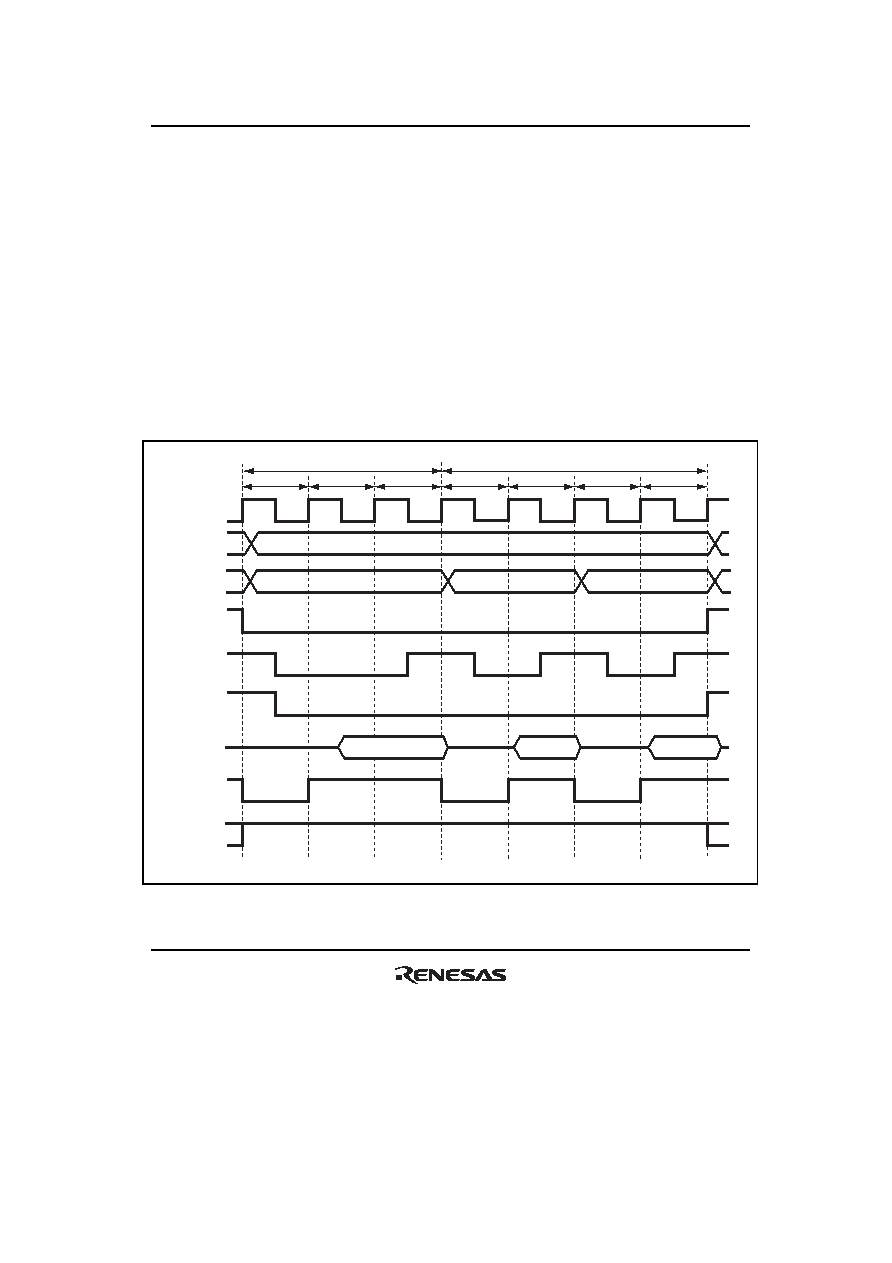

Figure 9.29 Example of Burst ROM Access Timing (ASTn = 1, Two Burst Cycles)
