Section 11 EXDMA Controller (EXDMAC)
Rev. 2.00 Sep. 24, 2008 Page 488 of 1468
REJ09B0412-0200

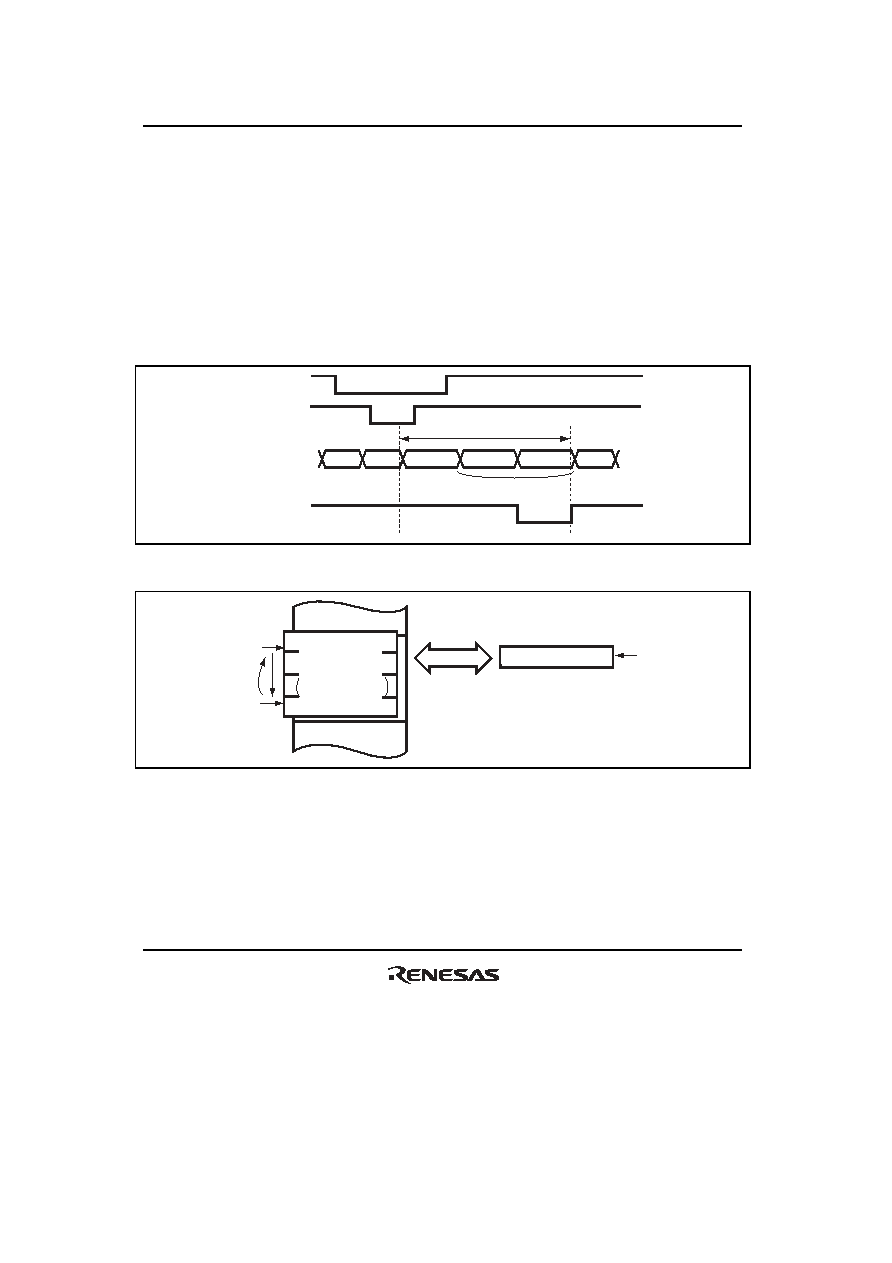

Figure 11.10 shows an example of EXDMA transfer timing in block transfer mode. The transfer
conditions are as follows:
Address mode: Single address mode
Data access size: In bytes
One block size: 3 bytes
Figure 11.11 shows the block transfer mode operation in single address mode and figure 11.12
shows the block transfer mode operation in dual address mode.
CPU
CPU
EXDMAC
EXDMAC
EXDMAC
CPU
Bus cycle
ETEND
EDREQ
CPU cycle not generated
One-block transfer cycle
EDRAK
Figure 11.10 Example of Block Transfer Mode
Transfer
Address T
Address B
EDACK
Block
BKSZH
×
data access size
Figure 11.11 Block Transfer Mode Operation in Single Address Mode
(with Block Area Specified)
