Section 10 DMA Controller (DMAC)
Rev. 2.00 Sep. 24, 2008 Page 432 of 1468
REJ09B0412-0200
(2)
Normal Transfer Mode (Burst Mode)
In burst mode, one byte, one word, or one longword of data continues to be transferred until the
transfer end condition is satisfied.
When a burst transfer starts, a transfer request from a channel having priority is suspended until
the burst transfer is completed.
In figure 10.27, the
TEND signal output is enabled and data is transferred in words from the
external 16-bit 2-state access space to the external 16-bit 2-state access space in normal transfer
mode by burst access.
DMA read cycle
DMA read cycle
DMA write cycle
Address bus
DMA write cycle DMA read cycle
DMA write cycle
B
φ
RD
LHWR, LLWR
TEND
Bus
released
Bus
released
Last transfer cycle
Burst transfer

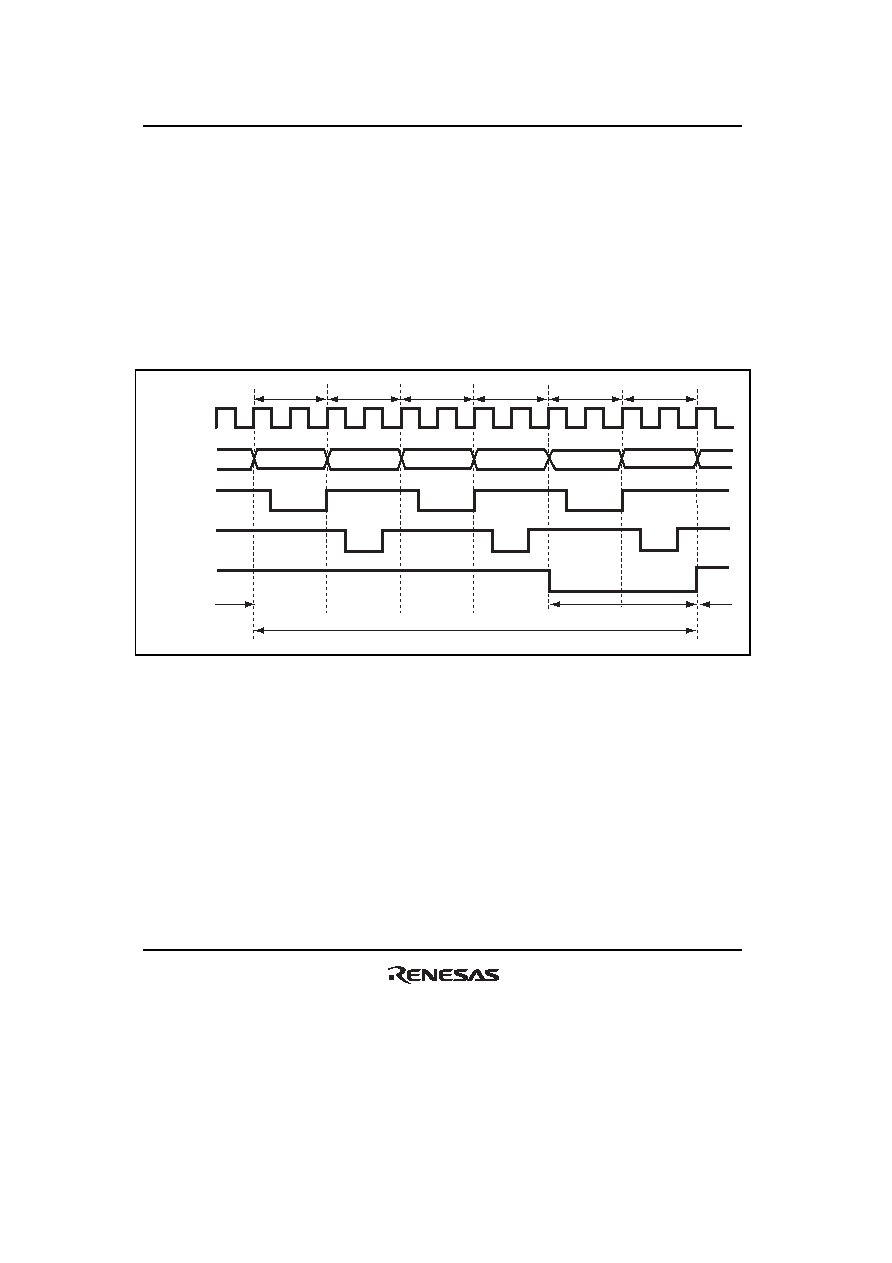

Figure 10.27 Example of Transfer in Normal Transfer Mode by Burst Access
