@C/E5@C-T

134

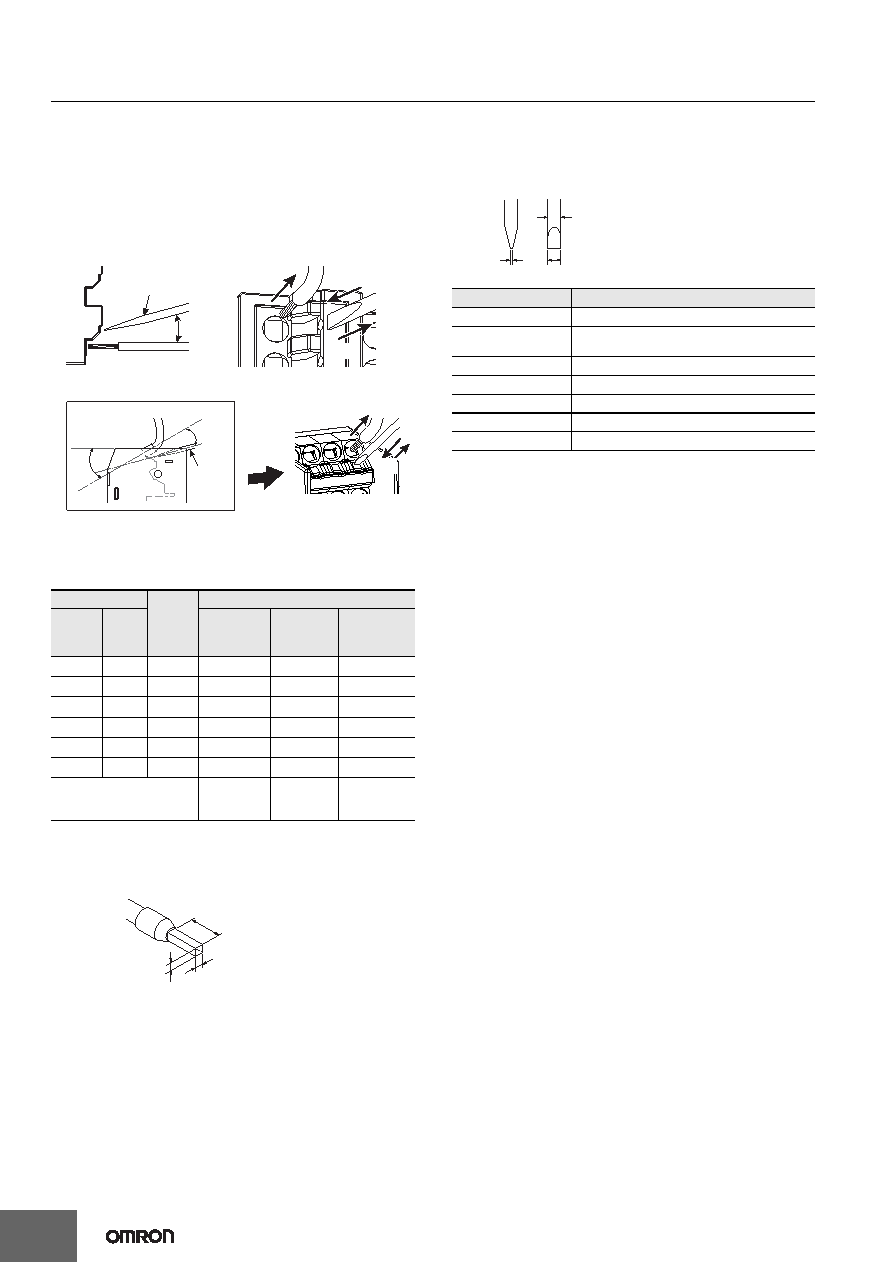

2. Removing Wires from the Push-In Plus Terminal Block

Use the following procedure to remove wires from the terminal block.

The same method is used to remove stranded wires, solid wires, and

ferrules.

1. Hold a flat-blade screwdriver at an angle and insert it into the

release hole.

2. With the flat-blade screwdriver still inserted into the release hole,

remove the wire from the terminal insertion hole.

3. Remove the flat-blade screwdriver from the release hole.

3. Recommended Ferrules and Crimp Tools

Recommended ferrules

Note: 1. Make sure that the outer diameter of the wire coating is

smaller than the inner diameter of the insulation sleeve of

the recommended ferrule.

2. Make sure that the ferrule processing dimensions conform

to the following figures.

Recommended Flat-blade Screwdriver

Use a flat-blade screwdriver to connect and remove wires.

Use the following flat-blade screwdriver.

The following table shows manufacturers and models as of 2015/Dec.

* OMRON's exclusive purchase model XW4Z-00B is available to

order as SZF 0-0,4 x 2,5 (manufactured by Phoenix Contact).

Applicable wire

Ferrule

Con-

ductor

length

(mm)

Recommended ferrules

mm2

AWG

Manufactured

by Phoenix

Contact

Manufactured

Weidmuller

Manufactured

by Wago

0.25

8 AI0.25-8

H0.25/12

FE-0.25-8N-YE

0.34

8 AI0.34-8

H0.34/12

FE-0.34-8N-TQ

0.5

8 AI0.5-8

H0.5/14

FE-0.5-8N-WH

0.75

8 AI0.75-8

H0.75/14

FE-0.75-8N-GY

8 AI1-8

H1.0/14

FE-1.0-8N-RD

1.5

8 AI1.5-8

H1.5/14

FE-1.5-8N-BK

Recommended crimp tool

CRIMPFOX6

CRIMPFOX6T-F

CRIMPFOX10S

PZ6 roto

Variocrimp4

10 to 15°

Flat-blade screwdriver

(1)

(2)

(3)

E5CC-B/EC-B

∗

Side view

of the product

∗ Side view of the product

Flat-blade

screwdriver

E5DC-B

(1)

(2)

(3)

10 to 15°

30°

2.1 mm max.

2.7 mm max.

8 mm

Model

Manufacturer

ESD 0,40

✕2,5

Wera

SZS 0,4

✕2,5

SZF 0-0,4

✕2,5

Phoenix Contact

0.4

✕2.5✕75 302

Wiha

AEF.2,5

✕75

Facom

210-719

Wago

SDIS 0.4

✕2.5✕75

Weidmuller

9900 (-2.5

✕75)

Vessel

Front

Side

0.4 mm

2.5 mm dia.

2.5 mm
