@C/E5@C-T

129

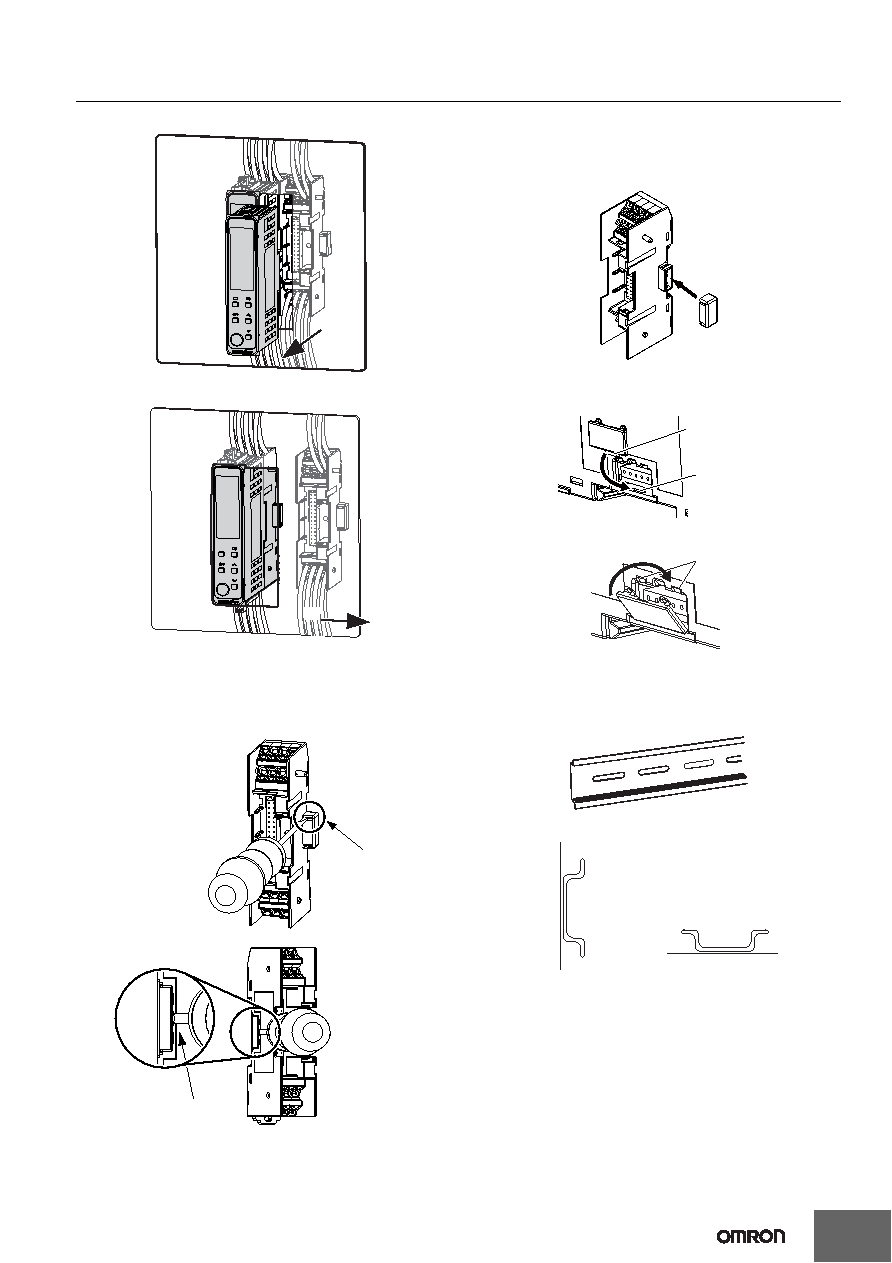

2. Remove the Main Unit from the Terminal Unit.

3. Remove the Terminal Units.

Removing the Connector Cover

E5DC-B

1. For both male and female covers, insert the tip of a flat-blade

screwdriver into the cutout on the connector cover to remove the

connector cover.

Attaching the Connector Cover

E5DC-B

For male connector covers

1. Press on the connector cover until it clicks into place. There is no

vertical direction for male connector covers.

For female connector covers

1. Insert the projecting part on the female connector cover into the

groove on the terminal unit.

2. Press on the female connector cover until it clicks into place in the

cutout.

Mounting the DIN Track

Attach the DIN Track to the inside of the control panel with screws to

at least three locations.

• DIN Track (sold separately)

PFP-50N (50 cm) and PFP-100N (100 cm)

Install the DIN Track vertically to the ground.

(2)

(3)

Cutout

Male connector cover

Cutout

Female connector cover

(1)

Projection Part

Groove

(1)

Cutout

(2)

Vertical: OK

Horizontal: NG
