@C/E5@C-T

115

E5C-T

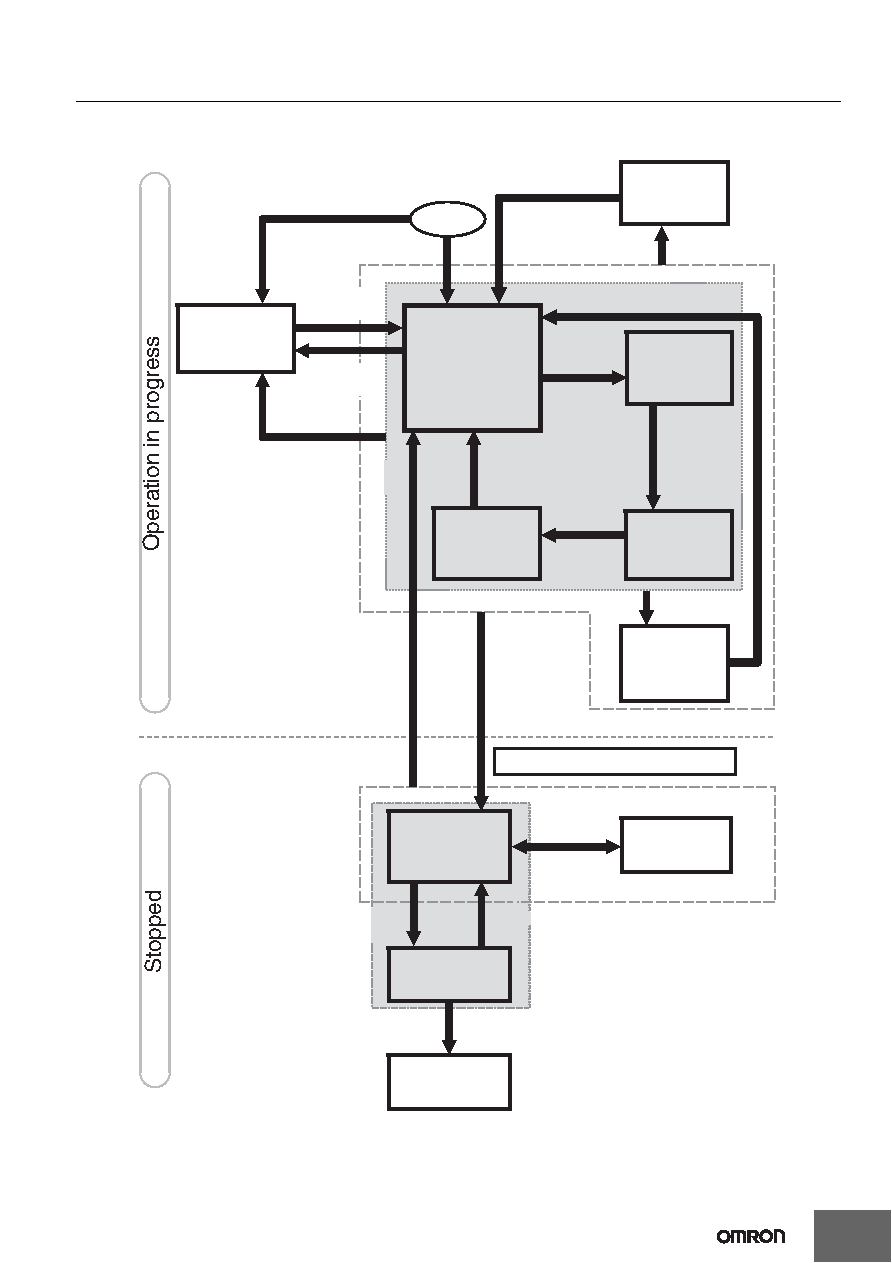

This diagram shows all of the setting levels. To move to the advanced function setting level and calibration level, you must enter passwords. Some

parameters are not displayed depending on the protect level setting and the conditions of use.

*1. Set the PF Setting parameter to a-m (Auto/Manual).

*2. The No. 1 display will flash when the keys are pressed for 1 s or longer.

*3. Set the PF Setting parameter to pfdp (monitor/setting items).

Calibration Level

Control and auxiliary outputs stop.

Advanced Function

Setting Level

Advanced settings

Communications

Setting Level

Power ON

Initial Setting Level

Operation Level

Adjustment Level

Monitor/Setting

Item Level

Press

O and M Keys

for at least 1 s.

Starting in manual mode

Level changes

automatically.

Press

O Key

for less than 1 s.

Protect Level

Manual Control

Level

Used to set the MV

manually.

Used for SPs and other

basic settings and

monitoring.

Press

O Key for at

least 3 s while

a-m is

displayed.*2

Used to set protection

for operations.

Enter the password (1201)

while

cmov (Move to

Calibration Level

parameter) is displayed.

Used to set the input type

and other basic settings.

Press

S Key.

Used to display

specified monitor and

setting items.

Press

O or

S Key for at least 1 s.

Program Setting

Level

Parameter and

segment settings for

all programs

Press

S Key

for at least 1 s.*1

Press

Key for at

least 1 s.

Press

O Key

for less than 1 s.

Press

O Key

for less than 1 s.

Press

O Key

for less than 1 s.

PID Setting

Level

Parameters for all PID

sets (e.g., PID

constants)

Adjustment parameters

(e.g., PID constants for

current PID set)

Press

O Key for

at least 3 s.*2

Press

S Key.

Press

O Key for less

than 1 s (only models

with communications).

Press

O Key for at

least 1 s.

Communications settings

Release protection and then

enter the password (−169) for

the

amoV (Move to Advanced

Function Setting Level)

parameter.

Press

O and M Keys

for at least 3 s.*2
