4.12.13.9 DATA and FLAG Signal Timing

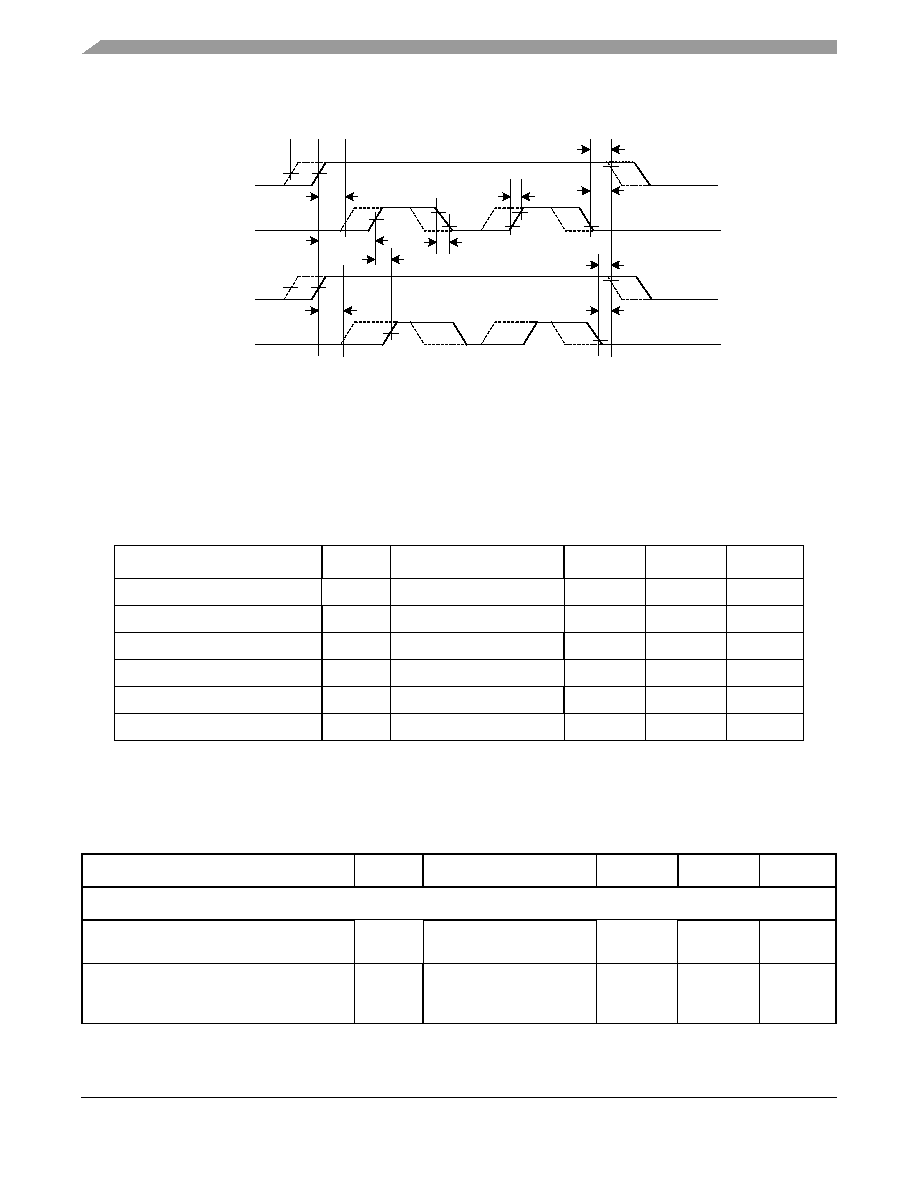

Figure 80. DATA and FLAG Signal Timing

4.12.14 MediaLB (MLB) Characteristics

4.12.14.1 MediaLB (MLB) DC Characteristics

Table 71 lists the MediaLB 3-pin interface electrical characteristics.

Table 72 lists the MediaLB 6-pin interface electrical characteristics.

Table 71. MediaLB 3-Pin Interface Electrical DC Specifications

Parameter

Symbol

Test Conditions

Min

Max

Unit

Maximum input voltage

—

3.6

Low level input threshold

VIL

——

0.7

High level input threshold

VIH

See Note1

1 Higher V

IH thresholds can be used; however, the risks associated with less noise margin in the system must be

evaluated and assumed by the customer.

1.8

—

Low level output threshold

VOL

IOL = 6 mA

—

0.4

High level output threshold

VOH

IOH = –6 mA

2.0

—

Input leakage current

0 < Vin < VDD

—

±10

μA

Table 72. MediaLB 6-Pin Interface Electrical DC Specifications

Parameter

Symbol

Test Conditions

Min

Max

Unit

Driver Characteristics

Differential output voltage (steady-state):

I VO+ - VO- I

VOD

See Note1

300

500

Difference in differential output voltage

between (high/low) steady-states:

I VOD, high - VOD, low I

ΔVOD

—

-50

DATA

(TX)

FLAG

(TX)

DATA

(RX)

FLAG

(RX)

50%

80%

20%

80%

EdgeSepTx

TxToRxSkew

EdgeSepRx

Bit

Rise

Fall

Note1

Note2
