Contact Data

Number of contacts and type

Contact assembly

Contact material

Limiting continuous current at max. ambient temperature

Maximum switching current

Maximum swichting voltage

Maximum switching capacity

Thermoelectric potential

Minimum switching voltage

Initial contact resistance / measuring condition: 10 mA / 20 mV

Electrical endurance

Contact application 0 (30 mV/ 10 mA)

Cable load open end

Resistive load

150 V / 0.2 A - 30 W

24 V / 1.25 A - 30 W

Mechanical endurance

UL contact ratings

2 changeover contacts

Bifurcated contacts

Silver-nickel, gold-covered

2 A

220 Vdc

250 Vac

60 W, 62.5 VA

< 10 mV

100 mV

< 70 mW

min. 5 x 106 operations

min. 2.5 x 106 operations

min. 2.0 x 105 operations

typ. 108 operations

220 Vdc / 0.24 A - 60 W

125 Vdc / 0.24 A - 30 W

250 Vac / 0.25 A - 62.5 VA

125 Vac / 0.5 A - 62.5 VA

30 Vdc / 2 A - 60 W

MT2 Relay

Insulation

Insulation resistance at 500 Vdc

Dielectric test voltage (1 min)

between coil and contacts

between adjacent contact sets

between open contacts

Surge voltage resistance

according to FCC 68 (10 / 160 ms) and IEC (10 / 700 ms)

between coil and contacts

between adjacent contact sets

between open contacts

> 109 W

1050 Vrms

750 Vrms

1500 V

Page 6 (9)

108-98006 Rev. C

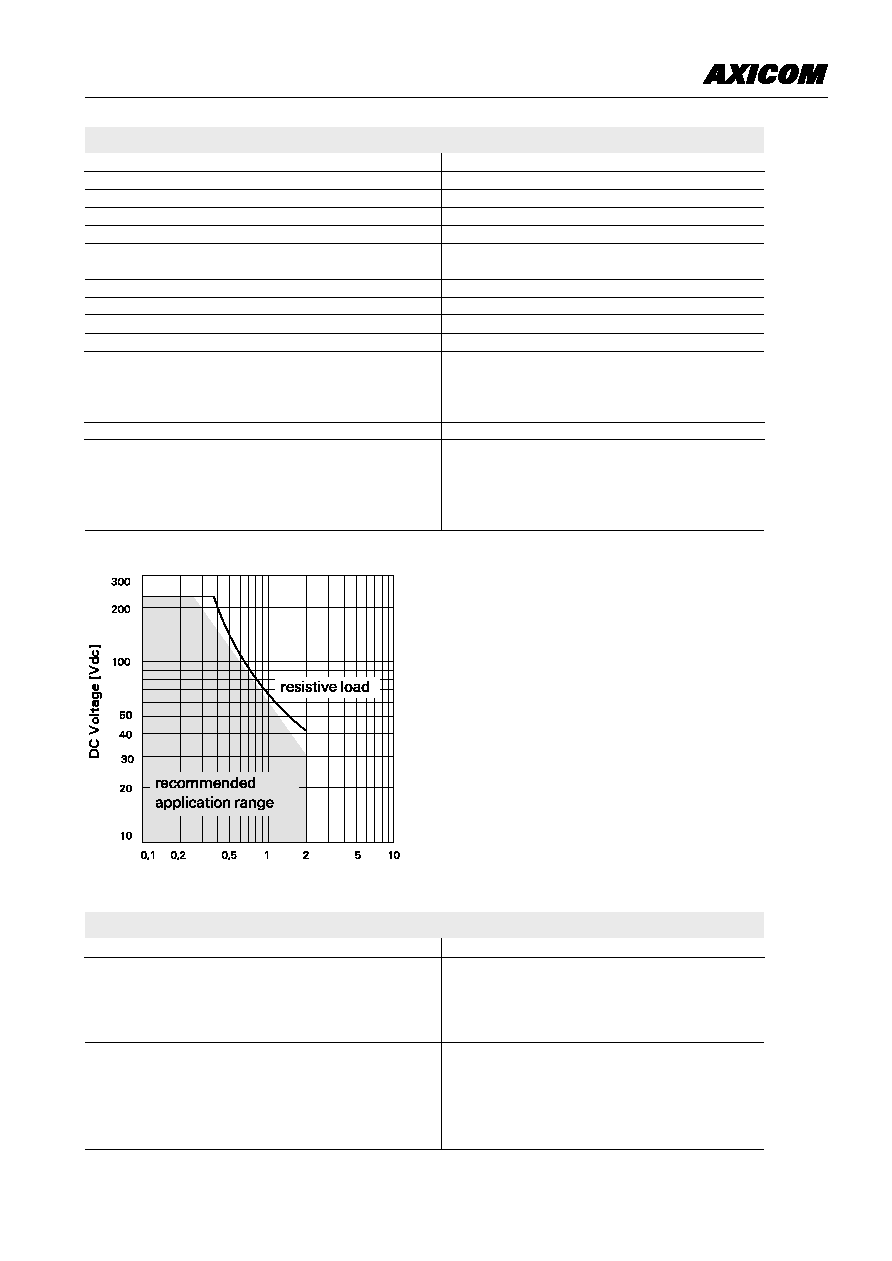

Max. DC load breaking capacity

DC current [A]
