MB9B410R Series

14.

Package Dimensions

Package Type

Package Code

LQFP 100

LQI100

NOTES :

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. DATUM PLANE H IS LOCATED AT THE BOTTOM OF THE MOLD PARTING

LINE COINCIDENT WITH WHERE THE LEAD EXITS THE BODY.

3. DATUMS A-B AND D TO BE DETERMINED AT DATUM PLANE H.

4. TO BE DETERMINED AT SEATING PLANE C.

5. DIMENSIONS D1 AND E1 DO NOT INCLUDE MOLD PROTRUSION.

ALLOWABLE PROTRUSION IS 0.25mm PRE SIDE.

DIMENSIONS D1 AND E1 INCLUDE MOLD MISMATCH AND ARE DETERMINED

AT DATUM PLANE H.

6. DETAILS OF PIN 1 IDENTIFIER ARE OPTIONAL BUT MUST BE LOCATED

WITHIN THE ZONE INDICATED.

7. REGARDLESS OF THE RELATIVE SIZE OF THE UPPER AND LOWER BODY

SECTIONS. DIMENSIONS D1 AND E1 ARE DETERMINED AT THE LARGEST

FEATURE OF THE BODY EXCLUSIVE OF MOLD FLASH AND GATE BURRS.

BUT INCLUDING ANY MISMATCH BETWEEN THE UPPER AND LOWER

SECTIONS OF THE MOLDER BODY.

8. DIMENSION b DOES NOT INCLUDE DAMBAR PROTRUSION. THE DAMBAR

PROTRUSION (S) SHALL NOT CAUSE THE LEAD WIDTH TO EXCEED b

MAXIMUM BY MORE THAN 0.08mm. DAMBAR CANNOT BE LOCATED ON

THE LOWER RADIUS OR THE LEAD FOOT.

9. THESE DIMENSIONS APPLY TO THE FLAT SECTION OF THE LEAD

BETWEEN 0.10mm AND 0.25mm FROM THE LEAD TIP.

10. A1 IS DEFINED AS THE DISTANCE FROM THE SEATING PLANE TO

THE LOWEST POINT OF THE PACKAGE BODY.

DIMENSIONS

SYMBOL

MIN.

NOM. MAX.

1.70

0.05

0.15

0.27

0.09

0.20

16.00 BSC

14.00 BSC

0.50 BSC

0.45

0.60

0.75

0.30

0.50

0.70

16.00 BSC

14.00 BSC

0.25

0.0 8 C

100

E1 E

0.0 8

C A-B

SEAT ING

PLA NE

0.2 0 C A-B D

0.1 0 C A-B D

SECTION A-A'

5 7

E1 E

5 7

SIDE VIEW

TOP VIEW

BOTTOM VIEW

DETAIL A

100

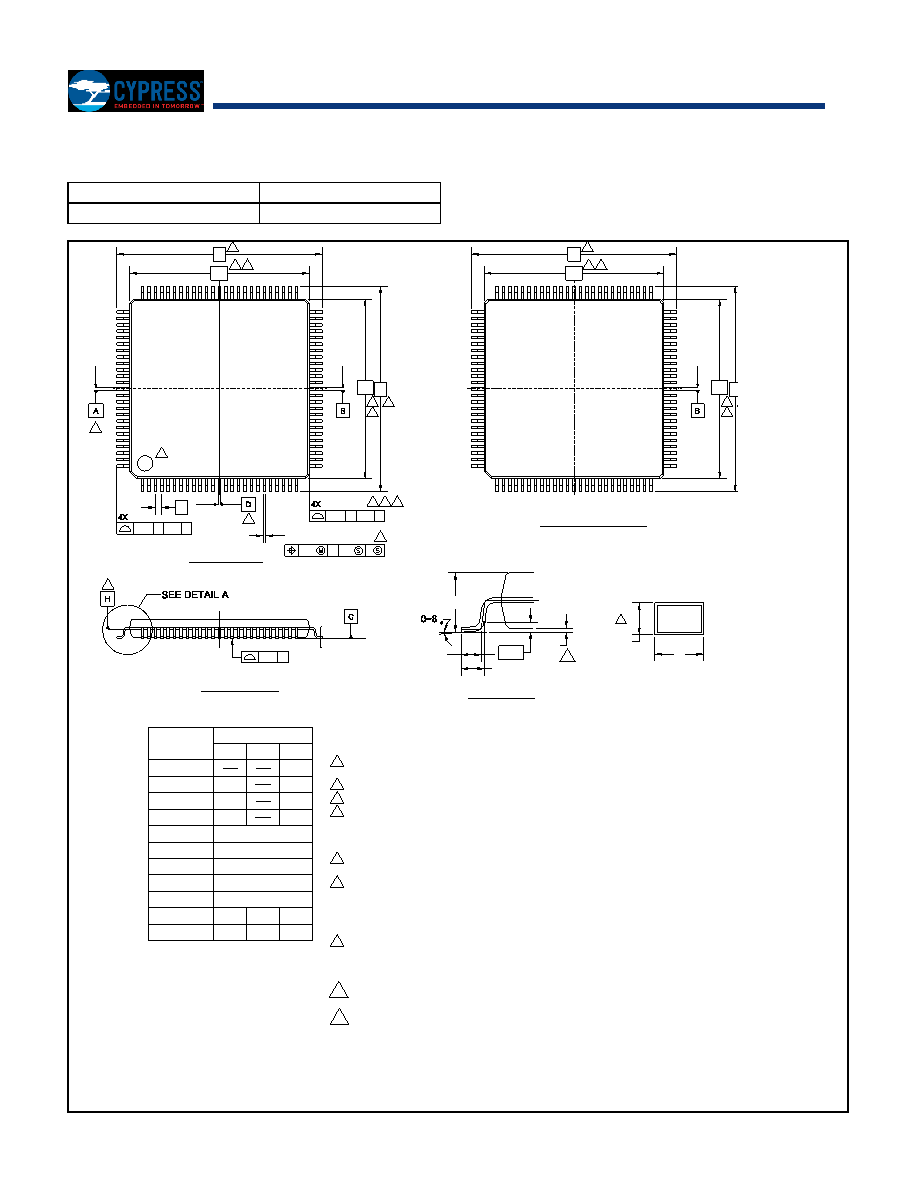

PACKAGE OUTLINE, 100 LEAD LQFP

14.0X14.0X1.7 MM LQI100 REV*A

002-11500 *A
